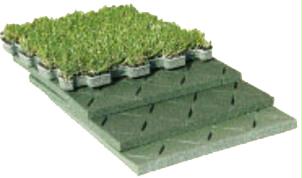

shockpad for artificial turf

Product Description

This product is made of PE, POE, etc. by the process of foaming, cutting and punching. The unique cutting design offer exellent water drainage, avoid swelling or shrinking. By using shock pad, the artificial grass system will provide good shock absorption, exellent ball rebound and protect players from muscle or bone injuries.

Technical Specification

Model

M-X-1

M-X-2

M-X-3

Unit

Standard

Properties

Spec.

Spec.

Spec.

Density

30±10%

50±10%

70±10%

kg/M3

ISO845

Tensile Strength

90.4

150.7

200

Kpa

EN12230

practical performance

Thickness 10mm

Shock Absorption

33.7

41

48

%

EN14808

Vertical Deformation

6.8

6.1

4.2

mm

EN14809

Water Penetration Rate

12388

17375

31818

mm/hour

EN12616

HIC Value

0.3

0.3

0.4

m

EN1177

EXW price

In rolls: Width 1.52m±10％, Length: ％

Strengths

1. Only one day needed to finish a full size field due to the light weight and easy handling or installation.

1. Closed-cell PE doesn\'t absorb water, which makes the installation not affected by bad weather.

1. Since edges are cut neatly, all the joints can be easily and accurately welded.

1. The unique design offers excellent water drainage and avoids swelling or shrinking and thus the dimension always remains stable.

1. Great shock absorption and ball rebounce.

1. Not rot or pulverize and long usage life.

1. Heavy-duty machine is ok to move on its flat surface.

1. Heavy-duty machine is ok to move on its flat surface.

1. Stable shock absorption keeps the system stable sports performance.
