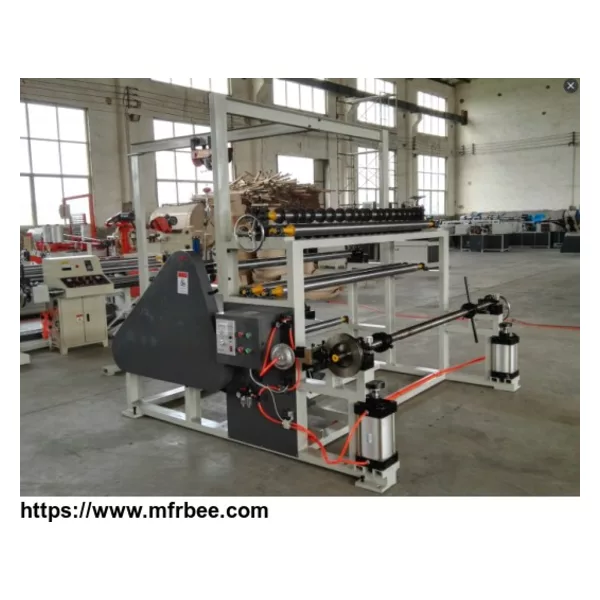

1600A paper roll slitter rewinder machine
Product Quick Detail
- Minimum Order
- 1
- Warranty
- 12 months
- Application
- paper
- Place Of Origin
- china
- Voltage
- 220/380/440V
- Packaging
- standard
- Delivery
- 15 Days
Specifications
| 纸管机型号type | 1600A双轴半自动分切机FQ-1600A Paper slitting machine | ||
| 技术参数 Technical parameter | 控制系统 Synchronization controller | ||
| 原纸宽度 Width of base paper | 1600（mm） | 主要执行器件(接触器等)Major Executing Devices (Contactors, etc.) | 正泰产品 CHINT |
| 原纸直径 Diameter of base paper | Φ1200（mm） | 气缸元件 Cylinder components | 成迪/索派\天奥产品 CEHNGDI/SUOPAI/TIANA |
| 收卷直径 Diameter of rewinder | Φ750mm | 传动系统 Configuration device | |
| 分切宽度 Slitting width | >30(mm) | 主电机 Main motor | Yongshun from Hengshui |
| 原纸克重 Slitting capability | 80-600g | 主机转速 Mainframe wheeling | 1400r/min |
| 主功率 Motor power | 5.5kw | 传动方式 Transmission mode | 皮带传送 The Belt |
| 切刀数量 Slitting knife | 18sets | 轴承 Bearing | 哈尔滨 Haerbin |
| 卷绕方式 Rewinding way | 气涨外收式 Gas up outside the closed | 收卷轴 Rewinding roll | 气涨轴 Gas rose axis |
| 调速控制 Speed of adjust and control | 力磁调速 Magnetic force | 收卷钢轴 | 气涨轴 Gas rose axis |
| 分切速度 Speed of Slitting | 1-150（m/min) | 配置装置 Configuration device | |
| 输入电源 Power input | 380V/220V | 装料 Charging | 气动 Pneumatic |
| 操作人员 Operator | 1 | 下料 Blanking | 电动 Electric |
| Size(mm)尺寸（毫米） | 张力调节 Tension adjust | 气动刹车 Pneumatic brake | |
| 放卷机：长*宽*高 Unwinding machine: L*W*H | 2600mm*2500mm*2200mm | 双气涨轴收卷 Rewinding of Double Air Rising Shaft | 双刀分切 Double cutter Division |
| 上刀规格Upper slitterspecifications | 2*105*75mm | 应用工具（赠送） Application tools | 气枪1把、气嘴2个内六角扳手一套Pneumatic runner，an Allen wrench，air tap 2 |
| 下刀规格Bottom slitter specifications | 2*105*75mm |
- Country: China (Mainland)
- Business Type: cangzhou quanheng carton machinery
- Market:Europe
- Founded Year:2000
- Address:
- Contact:zoro sun
