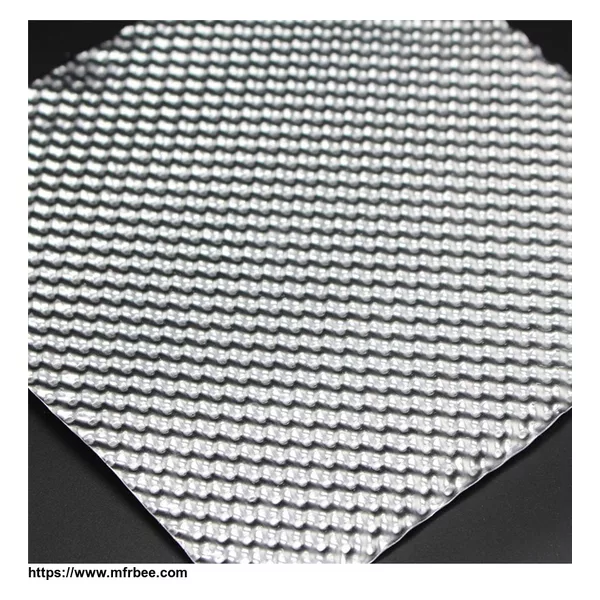

Embossed aluminum heat shield is easy to fold and form, and the most effective way to control and manage radiant heat issues. Aluminum is the ideal choice of material as it offers a high corrosion
resistance, high thermal conductivity, is highly reflectively and has a low emissive rate.
Easy to cut with tin snips, simply fold and form edges with a hammer on a square edge.
Feature
Designed to reduce temperatures up to 650 C.
Application
Used on Steering racks, General underfloor, Fuel tanks, Spare wheel wells, Exhaust hangers.
Specifications
Datasheet | |
Material | Aluminum |
Continuous Temperature | 1100 °F |
Melt Temperature | 2000 °F |
Standard Thickness | 0.2mm |
Thickness | 0.2, 0.3mm |
Length | MAX 30 meter/roll |
Color | Nature |
Cutting Tool | Scissor |
Part Number | Description |
AL0305 | 300mm × 500mm |
AL0505 | 500mm × 500mm |
AL0507 | 500mm × 700mm |
AL1010 | 1m × 1m |
Notes:
Special size and color upon request.
