Automatic electrical modular iron box roll forming machine
Product Quick Detail
- 40000
- 80000
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Container
- Delivery
- 55 Days
Specifications
Superda roll forming machine production line for electrical modular iron box, module consile box, steel conduit box, socket outlet box, switch box for push buttons.
Electrical modular box production machine parameter please visit
https://www.superdamc.com/cabinet-box-forming-machine/modular-iron-box-making-machine.html
1, Modular iron box production line technical parameters
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet |
|
| T.(mm) | 0.8-1.5mm |
|
||
| Yield Strength (Mpa) | Q235 |
|
||
| 2 | Forming product Width | Customized |
|
|
| 3 | Forming speed (m/min) | 6-13m | Including hole | |
| 4 | Forming main power (KW) | 7.5 KW | FYR | |
| 5 | Hydraulic power (KW) | 18.5 KW | FYR | |
| 6 | Bending power (KW) | 3 KW | FYR | |
| 7 | Voltage | AC380V，50Hz，3P |
|

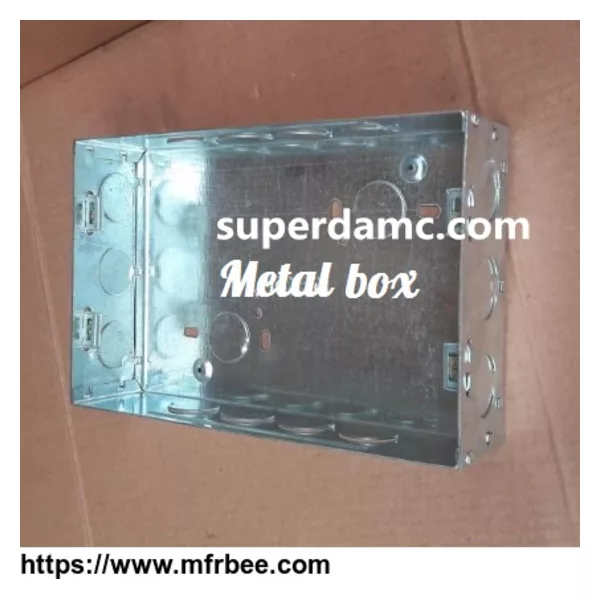

Automatic electrical modular iron box roll forming machine for making module consile box, iron outlet box, module socket box.
Metal module consile box production line process
Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack
Devices completed box prodution line
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler, straightener | 1 |
|
| 2 | Servo Feeder | 1 |
|
| 3 | Hydraulic machine | 2 | With mould |
| 4 | Guide device | 1 |
|
| 5 | Forming machine | 1 |
|
| 6 | Hydraulic station | 2 |
|
| 7 | Follow Shear | 1 | Including knife |
| 8 | Collect rack | 1 |
|
| 9 | Control system | 2 |
|
| 10 | Box bending device | 1 | With mould |
Steel module metal box machine accessories brand
| No. | Name | manufacturer |
| 1 | Motor & Reducer | Domestic brands |
| 2 | The main key bearing | Domestic brands |
| 3 | Inverter | Shilin |
| 4 | PLC Systems | Siemens |
| 5 | Low-voltage electrical | Schneider |
| 6 | Encoder | Omron |
| 7 | touch screen | Siemens |
| 8 | Hydraulic system | Domestic brands |
- Country: China (Mainland)
- Business Type: Fire hose reel cabinet roll forming machine, Distribution box roll forming machine, filter frame roll forming machine, oval tube forming machine, square tube roll forming machine, triangular tube machine, electronic cabinet roll forming machine
- Market:Asia,European Union
- Founded Year:2009
- Address:No.95, Ainan Rd, Longdong district, Longgang area
- Contact:Demi Wu
