Superda Fire Hose Reel Box Making Machine Manufacturer

30000
80000
Place Of Origin
China
Minimum Order
1
Packaging
Container
Delivery
45 Days

New design galvanized steel fire box production solution & fore hose box, fire fighting hose box roll forming machine production line.


Equipment for producting galvanized steel /stainless steel fire hose box, fire fighting box, emergency plans box.

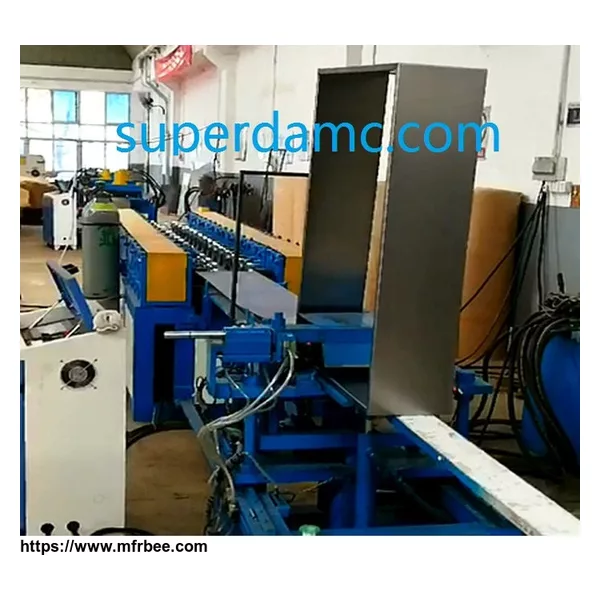

Box bending & forming in one line



Fire box production line process

Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack


Shenzhen Superda Machine Co., Ltd (https://www.superdamc.com

Main Forming machines (Panel width adjustable)


5.1 Forming Roller:16 stations,and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel:T.18mm ,A3 steel Heavy duty 。

5.3 Rolling speeding: 6-12 m/min。

5.4 Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
5.5 Motor power:7.5KW。
5.6 Main Roller :Dia.75mm,45 #。
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

More Fire Hose Box Roll Forming Process Technology detail please check

https://www.superdamc.com/cabinet-box-forming-machine/fire-hose-box-forming-machine.html



  • Country: China (Mainland)
  • Business Type: Fire hose reel cabinet roll forming machine, Distribution box roll forming machine, filter frame roll forming machine, oval tube forming machine, square tube roll forming machine, triangular tube machine, electronic cabinet roll forming machine
  • Market:Asia,European Union
  • Founded Year:2009
  • Address:No.95, Ainan Rd, Longdong district, Longgang area
  • Contact:Demi Wu
