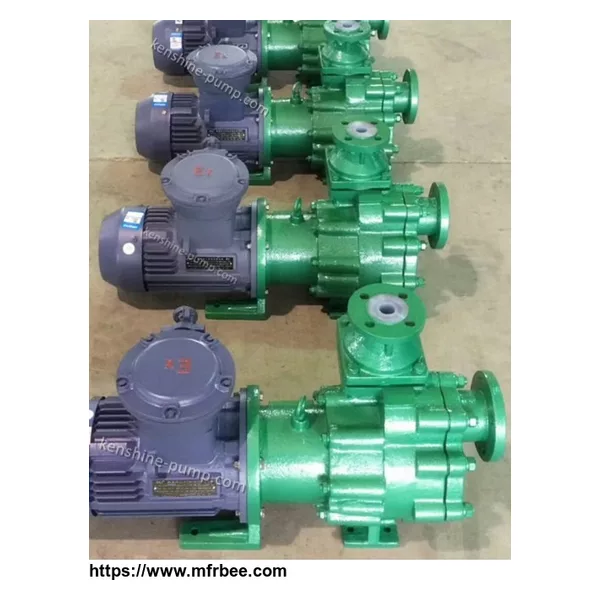

ZMD fluoroplastic liner self priming magnetic pump:

ZMD series self-priming magnetic pump integrates all the excellent characteristics of the magnetic pump and the advantage of self-priming pump. Suction height can reach 2-4 meters, Magnetic pump eliminates the shaft seal and uses magnetic coupling drive to completely eliminate the leakage.

ZMD self priming magnetic drive pump is made of metal with fluorine plastic liner. ZMD Self priming magnetic drive pump is widely used to convey inflammable, explosive, volatile, strong corrosion, strong permeability and high risk etc chemical medium.

According to the characteristics of the conveyed medium, such as the specific gravity of the medium, corrosion etc, the shaft with different material can be chose.

ZMD series magnetic drive pump adopts new material to make the isolation sleeve with high strength mechanical properties, which completely eliminates the phenomenon of magnetic eddy current of the general magnetic pump.

ZMD series magnetic drive pump adopts unique back pull structure. It is convenient to easily disassemble internal maintenance parts and no need to remove the pipeline. It greatly facilitate the daily maintenance work.

ZMD fluorine plastic self-priming magnetic pump is widely used in petrochemical industry, non-ferrous metal smelting, acid alkali pesticides, papermaking, pickling technology, rare earth separation, electroplating, electronics, into a foil, and other industries.

ZMD fluorine plastic self priming magnetic drive pump is the magnetic drive pump with new structure, high efficiency and energy saving, safe and practical features.

Working temperature: - 20 ° C to 150 ° C

Model	Flow	Head	Motor power	NPSHr(m)	Caliber(mm)	Efficiency	Weight
(m3/h)	(m)	(KW)	inlet	outlet	(%)	（Kg）
40ZMD-20F	8	20	2.2	3	40	25	16	110
40ZMD-32F	6	32	4	3	26	110
40ZMD-25F	10	25	4	3	24	110
50ZMD-20F	12	20	2.2	3	50	50	25	188
50ZMD-32F	15	32	5.5	3	44	188
50ZMD-25F	20	25	5.5	3	44	188
50ZMD-50F	8	50	7.5	3.5	21	188
50ZMD-45F	12.5	45	7.5	3.5	35	188
50ZMD-40F	15	40	7.5	3.5	40	188
65ZMD-35F	20	35	7.5	3.5	65	50	40	200
65ZMD-32F	30	32	7.5	3.5	52	200
65ZMD-25F	35	25	7.5	3.5	48	200
65ZMD-50F	20	50	11	4.5	65	40	40	290
65ZMD-45F	25	45	11	4.5	44	290
65ZMD-40F	35	40	11	4.5	53	290
80ZMD-35F	35	35	11	3.5	80	65	50	280
80ZMD-32F	60	32	11	3.5	55	280
80ZMD-25F	65	25	11	3.5	50	280
80ZMD-50F	35	50	18.5	4.5	80	50	38	320
80ZMD-45F	50	45	18.5	3.5	50	320
80ZMD-40F	60	40	18.5	3.5	48	320
