Specification:
1. Input Characteristics Test (AC)
• To measure the input voltage, current, power, power factor, power grid frequency
• The fundamental frequency scope of the current and voltage: 45Hz~65Hz; Narrowband range: 45Hz~5kHz; Broadband range: 45Hz~1MHz.
• Voltage range: 0.15~300 V (CF=1.67); Current range: 1.5mA ~ 2.7A (CF=3); Power range: 0.015~800 W; Power factor range: 0.000~1.000.
2. Input Characteristics Test (DC)
• Measuring voltage, current, power.
• Voltage range: 0.15~500V; Current range: 1.5mA~8A; Power range: 0.015~4000W
3. Output Characteristics Test (AC)
• Measuring lamp voltage, lamp current, lamp power.
• Lamp voltage range: 0.15~300V (CF=3); Lamp current range: 1.5mA~2.7A(CF=3); Lamp power range: 0.015~800W
4. Output Characteristics Test (DC)
• Measuring output lamp voltage, lamp current, lamp power, ripple wave current.
• Voltage range: 3~500V; Current range: 1.5mA~8A; Power range: 0.015~4000W; Ripple wave current range: 5mA~2.5A
It is ccording to GB/T 24825-2009 and IEC 62384:2006. It can measure the following parameters: Input Characteristics Test (AC/DC), Output Characteristics Test (AC/DC), Start Characteristics Test (DC), Hormanic and DF ...

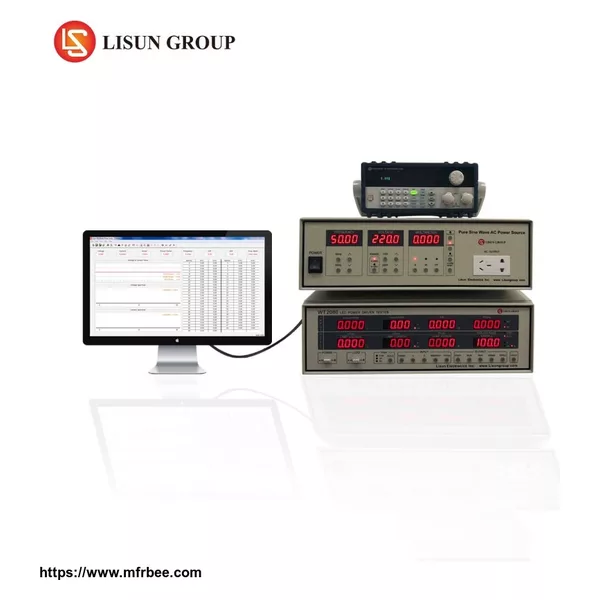

Product Description WT2080 LED Power Driver Test Instrument is the comprehensive test instrument for LED drive power which is according to GB/T 24825-2009 and IEC 62384:2006. It can measure the following parameters: Input Characteristics Test (AC&DC), Output Characteristics ...
