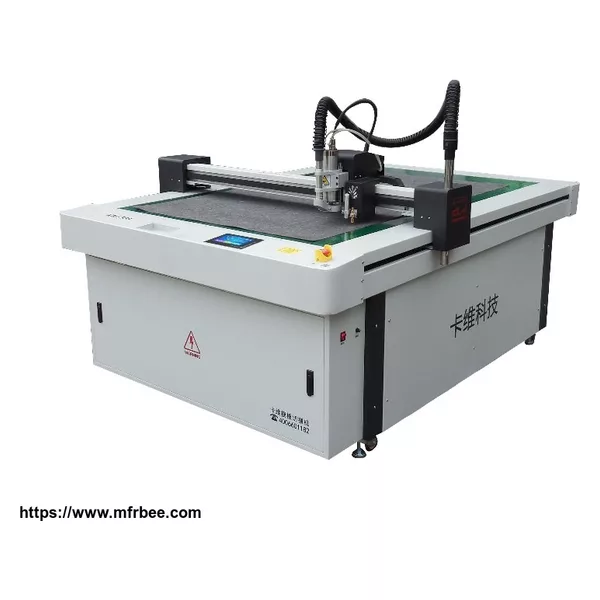

Carv High Speed Template Cutting&Milling Machine 50Hz/3-4.2kw

FOB Price
USD $7,500.00 / Piece
Place Of Origin
Minimum Order
1set wooden case
15 Days
Carv X series high-speed template cutting and milling machine, cutting efficiency is higher, the self-control system service is more convenient, double suction system, small sample cutting more precise, curve adaptive acceleration and deceleration, more smooth arc cutting.Automatic tool setting function is easy to replace each diameter cutter.
Industry standard main drafting unit
1.Machine model:XM1509 XM1512 XM1809 XP1509 XP1512 XP1809
2.Cutting area:1500×900 1500×1200 1800×900(mm)
3.Working characteristics:Strong compatibility, can be connected to any CAD software system)
4.Cutting material:Acrylic sheet, PVC board, PET board, polymer composite material, copper board paper)
5.Cutting method:multi-diameter milling cutter (replaceable),graver, stroke
6.Knife type/pen type:Milling cutter (single / multi-blade), cutting knife, oil pen
7.Display mode:4.5 inch LED color display
8.Cutting speed:50-800mm/s
9.Cutting thickness:≤10mm
10.Fixed mode: Vacuum adsorption (optional fixture)
11.Repeat accuracy:≤0.01mm
12.Software resolution:0.025mm/0.01mm/0.1mm
13.Instruction format:hpgl plt dxf
14.Output port:Network port ,SD card (optional with unlimited output module)
15.Voltage/power:220V±10% 50HZ/3-4.2kw
16.Working environment:-30-50ºC
17.Spindle speed:High speed frequency conversion 40000rmp
18.Spindle cooling:water-cooling
19.Transmission system:High-precision stepping driver,Imported line guide rails/bearing,Taiwan technical air pump
20.Be suitable for:Clothing, bags, shoes, electronics

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Asia,Europe
  • Founded Year:2012
  • Address:NO.290 Jishigang East Road,Haishu District,Ningbo,China
  • Contact:Abel Wang
