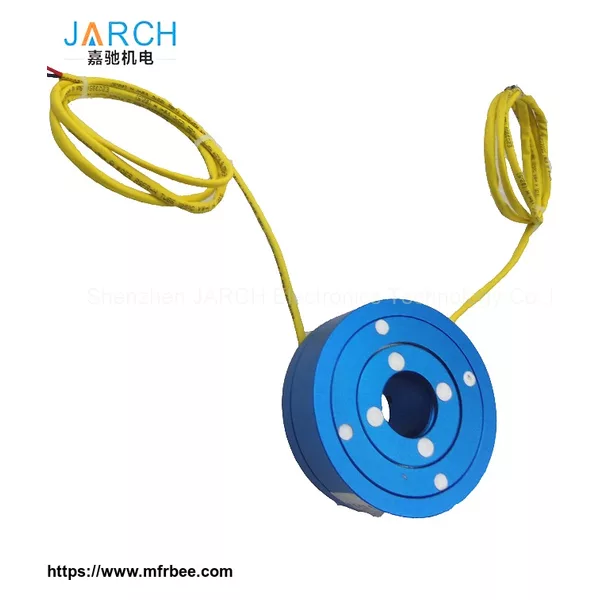

Disk slip rings flange mounted mini pancake slip ring
Product Quick Detail
- FOB Price
- USD $80.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 2
- Packaging
- carton box
- Delivery
- 15 Days
Specifications
Disk slip rings flange mounted mini slip ring
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
2,3,4,6,8,10 circuits version
The PS012, with 2 ~ 10 circiuts and 2 Signals, which we call our disk slip ring .
Specification:
| Operating Speed | 0-200 rpm |
| Number of Circuits | 2 ~ 10 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°C to +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
Benefits:
- Longer lead lengths availableI
- Power and signal combinations
- Rotor and stator lead exits
- gold alloy brush,Gold plated rings
- IP65 are optional
- More thickness available
Dimensions:
Applications:
- Filling equipment
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipment
- Manufacturing and process control equipment
Installation Instructions:
Shaft mounted
Flange mounted
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
If you have any questions, pls contact us without any hesitation.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Oceania
- Founded Year:2006
- Address:Unit C,GuangFa Industrial Park,Luotian Village,Songgang Town,Bao'an,SZ
- Contact:Kris Yao
