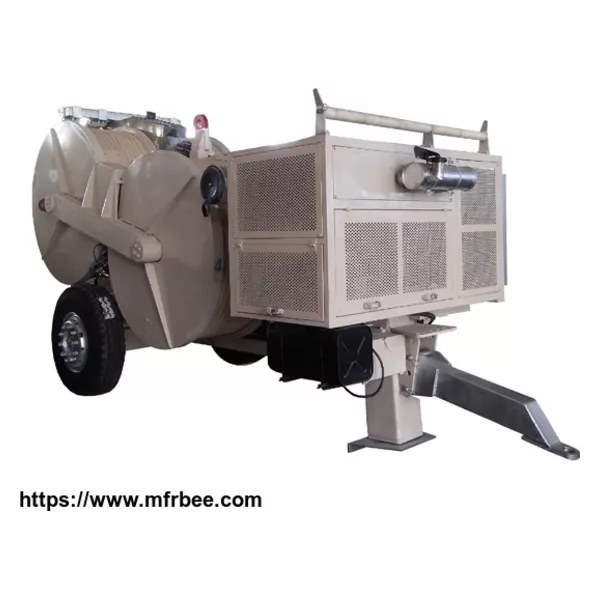

SA-YZ4×50 hydraulic Tensioner

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Order number :07208
Essential parameter
Maximum Tension(kN): 4×50or 2×100
Continuous Tension(kN):4×45 or 2×90
Maximum speed (km/h):5
Bullwheel bottom of groove diameter (mm):Φ1600
Number of grooves:4×5
Maximum pullback (kN):4×50or 2×100
Maximum speedback (km/h):4×1.5
Maximum suitable conductor diameter (mm): Φ42.5
Engine power /speed (kW/rpm):78/2500
Dimensions (mm): 5350×2350×2900
Weight(kg):12000
Uses :used to string various conducts and earth wire .Suitable for stringing two bundle conductors or four bundle conductors.
