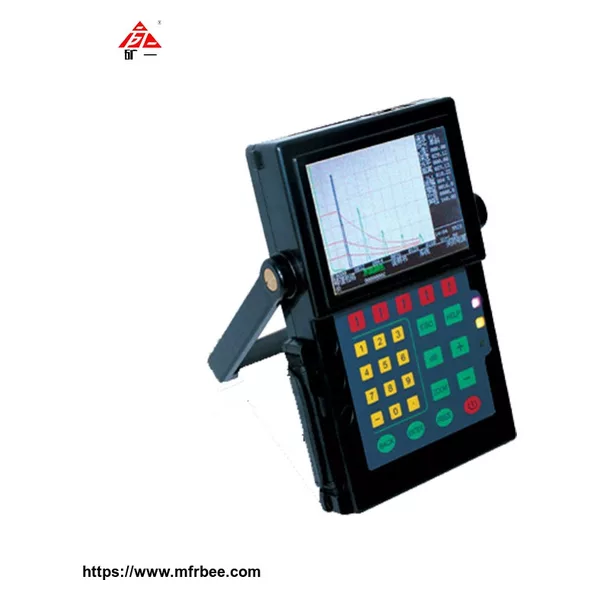

Ultrasonic Nondestructive Detector
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China（Mainland）
- Packaging
- Cases
- Delivery
- 15 Days
Specifications
Model: CST1
Description: CST1 Ultrasonic Nondestructive Detector
Introduction:
1. Theory: Ultrasonic is easy to be reflected when it contacts to two different kinds of medium interface.
2. High-speed collection chip to lead to 240MHz collection speed.
3. Automatically inspect probe “zero” point, sound velocity, “k” value and generate DAC, AVG curve, then generate a report through inputting industrial inspection standard.
Technology parameters:
1. Frequency range: 0.4~20MHz
2. Gain range: 0~120dB, 0.1, 2.0, 6.0dB stepping.
3. Dynamic range: 32dB
4. Vertical linearity: < 2.5%
5. Horizontal linearity: < 0.1%
6. Scanned area: 0~6000mm
7. Resolution: > 45dB
8. Surplus sensitivity: > 62dB (deep 200mm Φ2 flat-bottom hole)
9. Attenuator Accuracy: < ± 1dB/12dB
10. Working mode: single probe, double crystal probe, penetration probe.
11. Damping: 50/100/400Ω auto match.
12. Digits inhibition: 0~99% Linear inhibition, no influence to linear and gain.
13. Alarm: buzzer, LED light.
