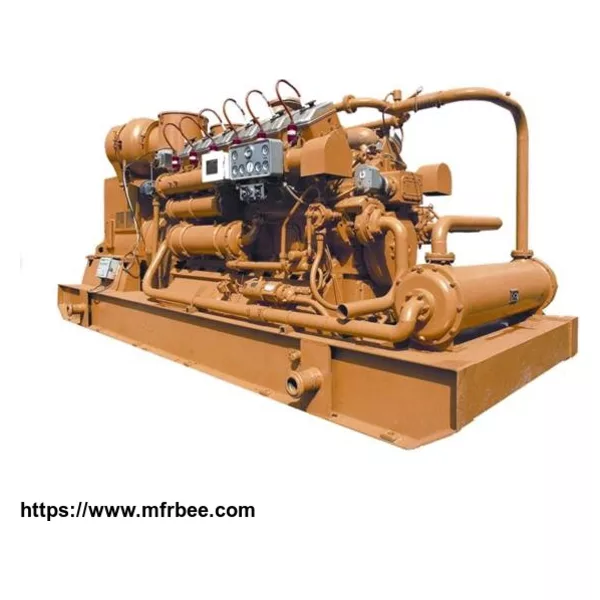

500 kw JCPC Jichai gas genset
Product Quick Detail
- Place Of Origin
- 中国
- Minimum Order
- 1
- Packaging
- Bulk cargo
- Delivery
- 60Days
Specifications
Technical Parameters
| Gas Engine | Alternator | |||||
| Model of engine | 12V190ZDT1-1 | Type | 1FC6 Series (SIEMENS Technology) | |||
| Rated power | Kw | 660 | Rated power | Kw | 500 | |
| Rated speed | r/min | 1200 | Rated voltage | V | 230/400 | |
| cylinder and layout | 12-cylinder, 60°V type | Rated current | A | 902 | ||
| Type | Turbocharged and Intercooling | Rated frequency | Hz | 60 | ||
| Ignition | Spark plug ignition | Power factor | 0.8 | |||
| Electric efficiency | 35% | Excitation model | Brushless | |||
| Oil consumption | g/kWh | ≤1 | Wiring method | 3-wire, 4-phase | ||
| Oil capacity | L | 200 | Insulation class | F | ||
| Idle speed | r/min | 700 | Protection class | IP23 | ||
| Bore | mm | 190 | Stable voltage regulating rate | Single running: ±1% Parallel running: ±2.5% | ||
| Stroke | mm | 210 | Instantaneous voltage regulating rate | -15%~+20% UN | ||
| Compression ratio | 12:1 | Over current multiple | 1.5IN, 2 minutes | |||
| Total displacement | L | 71.45 | Over load | 1 hour operation time at 110% rated power | ||
| Lubrication method | Pressure and splash lubrication | Ability of maintain short-circuit current | continuous current of three times of rated current, duration 5s | |||
| Overhauling (h) | h | 40000 |
Note: *Rating and fuel consumption based on ISO Standard conditions
