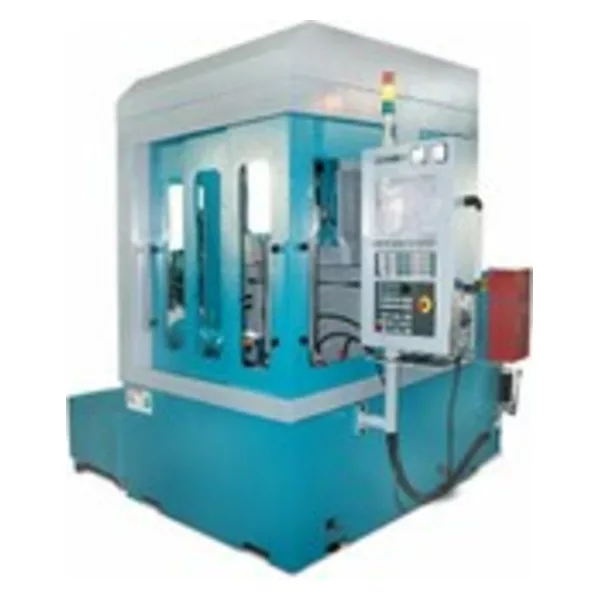

CNC Disk Eroding machine for PCD tools EM-400

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Technical spec-
close loop cnc servo controlled axes
X axis travel 400mm with linear scale feedback
Y axis travel 300mm with linear scale feedback
Z axis travel 300mm with linear scale feedback
C axis for tool index 0~360 deg
A axis for electrode angle -120 ~120 deg
Rotary electrode
Outer diameter max- 125mm
Thickness (worn) min- 10mm
Bore diameter 60mm and 32mm
Rotary electrode spindle
Rotational speed 10 ~1000rpm
Dielectric pump delivery rate 50 l/min
Dielectric tank capacity approx- 100 l
Connected load 5-0kVA
Dimensions 2540mm x 2090mm x 2400mm
Weight approx- 3800kgs
