Summarize

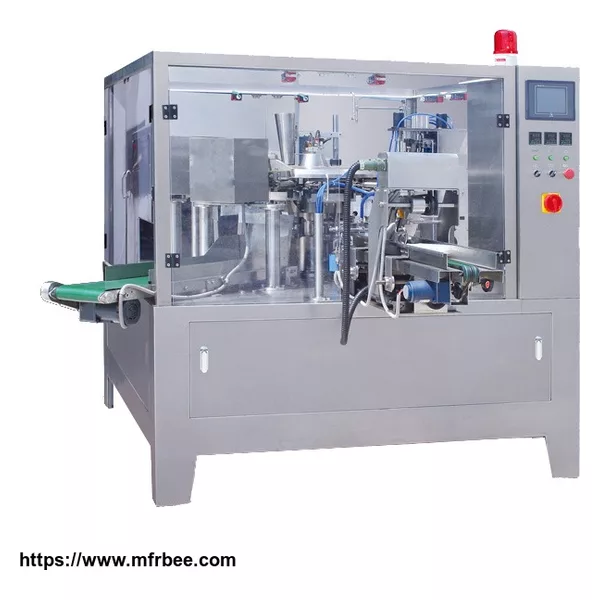

This automatic packing machine unit is specialized in the powder (such as milk powder, coffee powder, seasoning, additive), which includes the rotary packing machine and auger filler.
Function and Characteristics
1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and raw materials.
5.The part where touch to the material is made of stainless steel.
Main technical parameters
Pouch material | Laminated film\PE\PP etc. |
Pouch pattern | Stand-up, flat |
Pouch size |
W:100-210mm L:100-350mm (could be customized to your measure) |
Filling range | 10-500g (the screw attachment is to be changed) |
10-5000g (the screw attachment is to be changed) | |
Weigher accuracy |
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500g,with an error≤±0.5% |
Speed | 10-60pouches/min(The speed depends on the product status and filling weight) |
Voltage | 380V 3phase 50HZ/60HZ |
Total Power | 4.5KW |
Compress air | Per 0.6 cubic meters ( provided by the user) |
Notice: Based on parameters such as bag type, bag sizes to choose different types of packaging machine.
