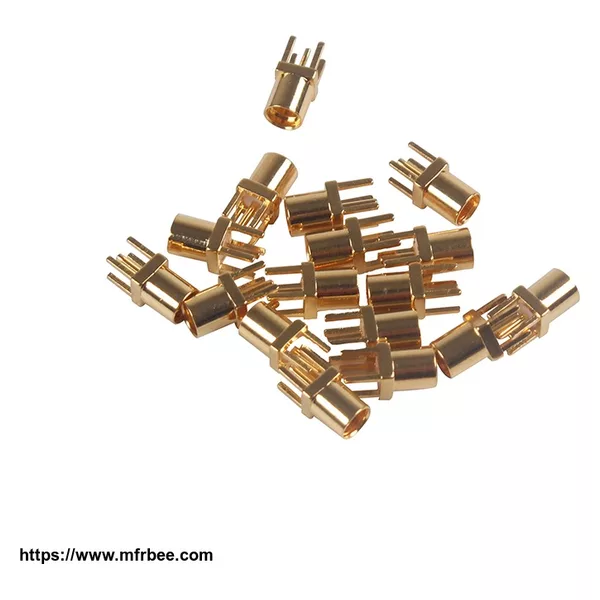

CONNECTOR MMCX Female PCB Connector
Product sourcing details
- Plated
- gold plated
- Product name
- MMCX Female PCB Connector
- Material
- brass
- Pins
- 1P
- Application
- RF
- Place of Origin
- China
- Website
- www.futai8.com
- Packaging
- 100pcs/bag
Supplier: FUTAI HK Co.,ltd
Purchasing information
- Minimum order
- 100
- Samples
- welcome ask sample for testing
- Lead time
- 7 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Export markets, Supply capacity.
Specifications
Model | FT-Connector-019 | |
Major Technical Characteristics | ||
Type | MMCX-KE-019 | |
Impedance | 50Ω | |
Frequency Range | DC~6GHz | |
Center conductor retention force | ≥0.28 N | |
Insertion Loss | 0.18dB/1GHz | |
Disengagement force | ≥6N | |
Voltage Standing Wave Ratio | Straight ≤1.25/3GHz | |
Right angle ≤1.43/3GHz | ||
Durability(mating) | ≥500(cycles) | |
Cable | PCB | |
Material & Plating | ||
Body | Brass | Gold plated |
Inner conductor | Beryllium or Tin bronze | Gold plated |
Resilient contact | Beryllium-copper | Gold plated |
Insulator | PTFE | |
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146 silicone rubber |
