Specifications
071、100、140、180
Working pressure
Common pressure 400 bar (40 Mpa), peak pressure 450bar (45 Mpa)
Technical Data
DG-Two-Point Direct Control
DR-Pressure Control
DRG-Remote Pressure Control
DRF/DRS-Pressure and Flow Control
LA... - Pressure, Flow and Power Control
ED-Electric Hydraulic Control
ER-Electric Hydraulic Control
Characteristic

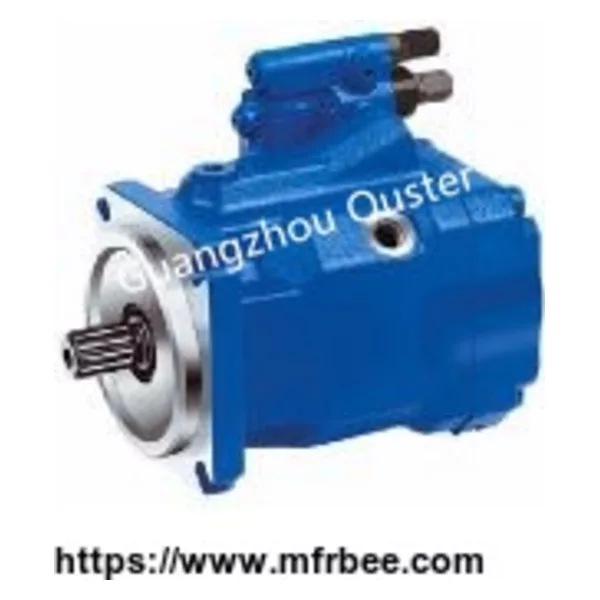

-Axial piston variable displacement pump with swashplate structure for hydrostatic transmission in open circuit.
-Flow is proportional to transmission speed and displacement.
-The flow can be steplessly changed by controlling the cradle.
-Hydrostatic unloading of rocker bearing
-Used for measure-sensing oil port of high- pressure nozzle (specification-180) or nozzle joint of (specification-22).
-Designed for high speed
-Low Noise Level
-Increased functional reliability
-Ideal power-weight ratio
-Universal through-shaft drive for specification- 180
A&S Hydraulic Co., Ltd. supplies Rexroth A10VO Piston Pumps. Contact Us A&S Hydraulic Co., Ltd. Email: hydraulic@esmachinery.com hydraulic@as-hydraulic.com https://hydraulic-pump-valve.com/ Cell/WeChat: +86-17311725072 Tel: +86-28-65238360 Fax: +86-28-86129221 No. 469, Xinsheng ...
