Specifications
40、60、75、95、130、145、190、260Series
1
Working pressure
Common pressure 400 bar (40 Mpa), peak pressure 450bar (45 Mpa)
Control mode:
LR power control
DR Constant Voltage Control
HD hydraulic control, related to pilot
pressure
EP proportional control
Characteristic

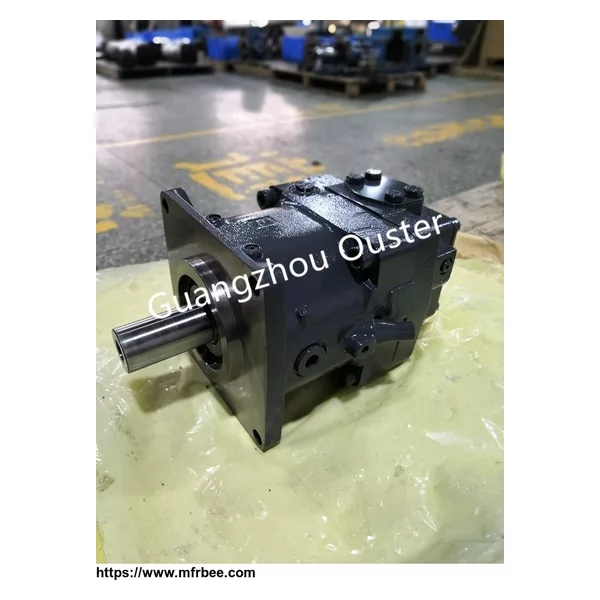

1.Swashplate axial piston variable displacement pump used for hydrostatic transmission in open circuit hydraulic system.
2.Mainly designed for the application of walking machinery.
3.Using optional built-in injection pump (impeller), the pump can operate under the condition of automatic starting oil injection.
4.Wide ranges of control options available to meet various application requirements.
5.The power control options are adjustable externally even when the pump is running.
6.The through-axle drive is suitable for adding gear pump and axial piston pump, that is 100% through-axle drive.
7.The output flow is proportional to the driving speed and can switch between qV Max and qV min = 0 steplessly.
Rexroth Hydraulic A4VSO Variable Piston Pump 1.Axial plunger variable pump with tilting disc structure for hydrostatic drive in open circuit 2. flow rate is proportional to transmission speed and displacement 3. the stepless change of flow can be realized by adjusting the Angle ...
Specifications 071、100、140、180 Working pressure Common pressure 400 bar (40 Mpa), peak pressure 450bar (45 Mpa) Technical Data DG-Two-Point Direct Control DR-Pressure Control DRG-Remote Pressure Control DRF/DRS-Pressure and Flow Control LA... - Pressure, Flow and Power ...
Specifications 250、355、500、750Series 3 Working pressure Nominal pressure 350 bar; Peak pressure 400 bar Control and regulation equipment: Manual adjustment; Motor regulation; Hydraulic adjustment, control volume correlation; Hydraulic regulation by servo/proportional ...
Specifications 16、22、28、40、71、125、250、500 Series 1, 3; Working pressure Rated pressure 40 MPa, peak pressure 45 MPa Characteristic - A4FO axial plunger fixed pump with swashplate structure for hydraulic driving in open circuit - Flow is proportional to driving ...
Specifications 28、45、71、100、140 Working pressure Rated pressure: 28 MPa, peak pressure: 35 MPa Control mode: DG-Two-Point Direct Control DR-Pressure Control DRG-Remote Pressure Control DFR, DFR1 - Pressure and Flow Control DFLR-Pressure, Flow and Power Control ...
Axialpiston pump type PM is a constant displacement hydraulic generator, with axial pistons and swash axlle meant to be used wit ...
