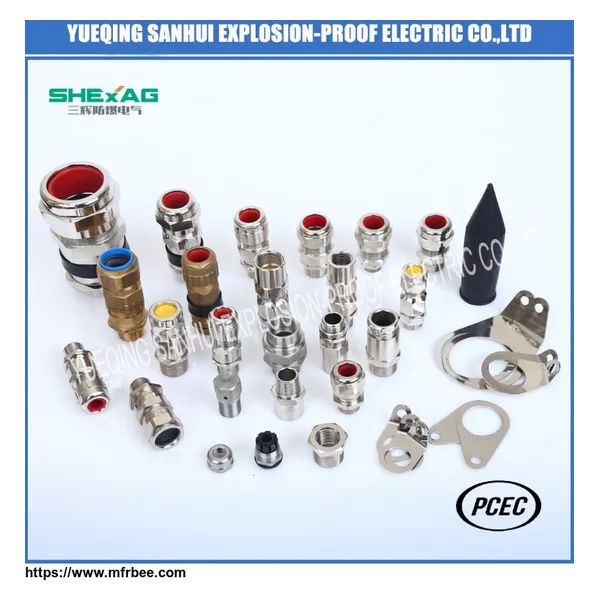

Simple armored industrial brass cable gland

Materials:Brass,Stainless steel 304,316

Surface treatment:Nickel planted,Passivation

Sealing materials:Silicon rubber,Neoprene,Teflon,PA6

Explosion mark:Exd IIC Gb/Exe II Gb/Ex tD A21 IP68

Fireproof grade:V0(UL94)

Protection level:IP68 (screwed-on the cap)

Ambient temperature:Static from -60℃ to 100℃,short up to 120℃

Dynamic from -20℃ to 80℃,short up to 100℃ without halide.

Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,Strict21,22 inflammable dust environment,it is widely used in petroleum, chemical, warehouse, food, pharmaceutical, military and other electrical cable fixing and sealing.

Mode Entry thread size AG Cable Acceptance details H GL

Hexagon size

Inner Sheath outside diameter(B) Wire armored /belt/knits

M NPT.G Min Max Orientation 1 Orientation 2 Across flats Across corners

SHBDM-2-01o M20 1/2” <8 5.5 12.0 0.9/1.25 0/0.7 30.0 16 24.0 27.7

SHBDM-2-01S M20 1/2” <12 9.5 16.0 0.9/1.25 0/0.7 38.0 16 24.0 27.7

SHBDM-2-02 M25 3/4” <15 12.5 20.5 0.9/1.25 0/0.7 38.0 16 30.0 34.6

SHBDM-2-03 M32 1” <21 16.9 26.0 1.25/1.6 0/0.7 44.0 18 36.0 41.6

SHBDM-2-04 M40 1 1/4” <27 22.0 33.0 1.6/2.0 0/0.7 46.0 18 45.0 53.1

SHBDM-2-05 M50 1 1/2” <33 28.0 41.0 1.8/2.5 0/0.7 50.0 20 55.0 63.5

SHBDM-2-06 M63 2” <43 36.0 52.6 1.8/2.5 0/1.0 64.0 20 68.0 75.1

SHBDM-2-07 M75 2 1/2” <54.4 46.0 65.3 1.8/2.5 0/1.0 70.0 20 80.0 92.4

SHBDM-2-08 M85 3” <66 57.0 78.0 1.8/2.5 0/1.0 80.0 20 95.0 109.6
