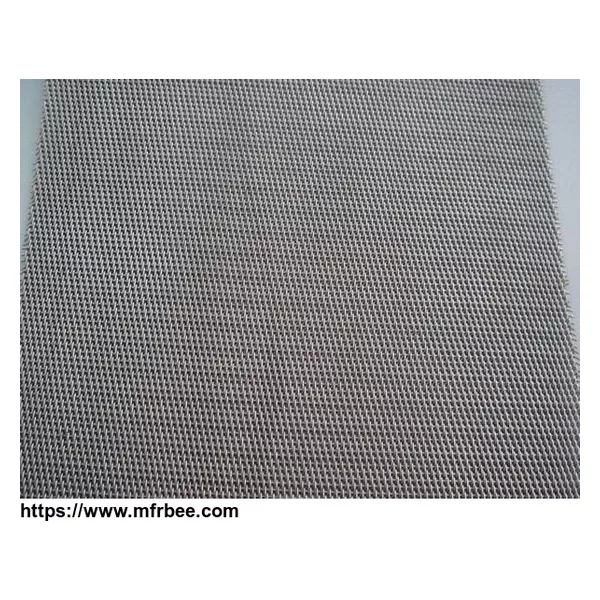

plain dutch weave wire mesh
|mesh||wire dia.||Opening Width||weight|
|8 x 62||0.63mm x 0.45mm||300||5.42|
|10 x 79||0.50mm x 0.355mm||250||3.16|
|12 x 64||0.58mm x 0.40mm||280||2.9|
|14 x 88||0.40mm x 0.30mm||180||2.54|
|19 x 140||0.315mm x 0.20mm||140||1.88|
|20 x 300||0.35mm x 0.20mm||-||3.6|
|24 x 110||0.355mm x 0.25mm||120||2.45|
|25 x 140||0.28mm x 0.20mm||100||1.95|
|30 x 150||0.25mm x 0.18mm||80||1.68|
|35 x 175||0.224mm x 0.16mm||71||1.52|
|40 x 200||0.20mm x 0.14mm||60||1.4|
|45 x 250||0.16mm x 0.112mm||56||1.09|
|50 x 250||0.14mm x 0.11mm||53||1.04|
|55.5 x 280||0.14mm x 0.10mm||50||0.92|
|65 x 330||0.11mm x 0.08mm||36||0.71|
|70 x 350||0.11mm x 0.08mm||35||0.72|
|70 x 385||0.11mm x 0.07mm||32||0.75|
|78 x 700||0.11mm x 0.08mm||30||1.39|
|80 x 400||0.10mm x 0.065mm||40||0.62|
|80 x 600||0.10mm x 0.06mm||-||-|
|80 x 800||0.15mm x 0.04mm||-||-|
|81 x 780||0.10mm x 0.07mm||30||1.22|
|90 x 550||0.12mm x 0.05||-||-|
Stainless Steel Decorative Wire Mesh is woven in Stainless Steel for mainly architectural decoration. Stainless steel wire mesh as architectural mesh for decoration and design combines functionality with high aesthetic features. A combination opens new perspectives to creative ...
Stainless steel decorative mesh is made of steel wires warp and steel rod, a special stainless steel mesh. This screen is desinged for architectural applications and high strength filtration, which is distinguished by their longevity, striking aesthetics and high grade of ...
Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a ...
Quick Information Brand Name:yjtwiremesh Place of Origin:China : Description Material SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc. Wire diameter 0.018-2.03mm Woven style plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave Mesh counts Plain weave wire ...
Stainless Steel Crimped Weave Mesh Product Details Stainless Steel Crimped Weave Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Description: Stainless Steel Crimped Wire Mesh is made ...
Stainless Steel Wire Mesh Product Details Stainless steel has the good performances as wear-resisting, heat-resisting, acid-resisting and corrosion resisting. Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical ...
wedge wire screen used in water treatment 1.Description: In water treatment, wedge wire screen used in demineralization, softening, ion exchange, gravity and pressure filtration. OASIS wedge wire screen is used in these processes to collect or distribute the treated liquid, to ...
Product description: Stainless steel mesh railing systems Stainless steel ferrule cable balustrade mesh is an impressive versatile products, its use is multifunctional and durable. Made from stainless steel wire rope, this tensile mesh is able to be laced to a support structure ...
Stainless Steel Wire Mesh and 304 stainless steel wire mesh can be divided into stainless steel plain woven wire mesh, stainless steel twill woven wire mesh, stainless steel three heddie wire mesh, stainless steel three heddie wire mesh. Woven Type: Plain Weave and Twill Weave ...
Place of Origin: Hebei, China (Mainland) Material: Stainless Steel Wire Type: Wire Cloth Application: Filters Weave Style: Plain/twill/dutch Weave Technique: Woven Model Number: LJ-HL1170 Brand Name: Product name: 0.01 mm ultra fine stainless steel wire mesh Usage: Liquid ...
