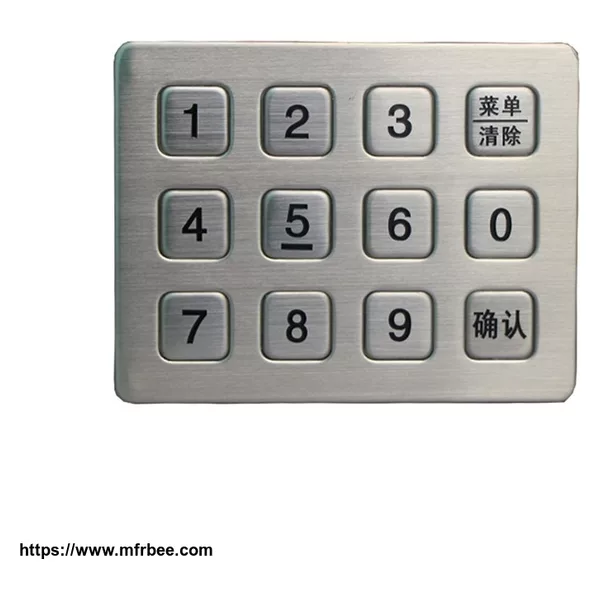

Metal numeric keypad waterproof standalone access control keypad
Product Quick Detail
- FOB Price
- USD $15.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 100
- Packaging
- 40 pcs/C
- Delivery
- 25 Days
Specifications
1.12 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 2 function keys.
2.Keys are good touch feeling and accurate data input without any noise.
3.Easy to install and maintenance; flush mount.
4.Our panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
5.Fonts and pattern of key surface can be customized.
6.The keypad is waterproof, anti-drilling and removal-proof.
7.The keypad uses double-sided PCB and mental dome; Good contact.
8.The labels on the buttons are made by etching, and fill in high strength paint.
1.Surface treatment of frame and keys: satin-finished or mirror polish.
2.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.
3.Labels on the buttons can be customized by etching.
| self-service library | self-service kiosk | CNC machine |
| household applications | oiling machine | charge spot |
| industrial telephone | ATM | access control |
| ticket machine | vending machine | medical facility |
| security system | fingerprint attendance machine |
| Model number | B720 |
| Defend Grade | IP65 |
| Keys | 12 keys |
| Vandal resistant | IK09 |
| Electrical lifetime | > 5 years |
| Contact resistance | 200 ohm (max) |
| Current Rating | appr. 30mA |
| Power supply | + 5V +/- 5% |
| Led color | option |
| G.W. | 0.19kg approx |
| Dimensions | 93.5mm *72.5mm*6.1mm |
| Frame/keys materials | Stainless steel |
| life span | ≥2 million |
| Elasticity of key | 2.5-3N |
| Key travel | ≤100Ω |
| Atmospheric pressure | 60-106Kpa |
| Operate Temperature | -40℃~+85℃ |
| Travel distance | 0.45mm |
