QBK AODD pump air operated double diaphragm pump

FOB Price
USD $200.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
carton or plywood case
Delivery
7 Days

QBK PVDF plastic air operated double diaphragm pump:

QBK Series new pneumatic diaphragm pump is designed and manufactured for various corrosive liquids and liquids with solid grain and high viscosity and volatile and flammable and toxin liquids on the base of QBY series pneumatic diaphragm pump. QBK series pump has the advantages such as long life and better anti-stall performance etc.

9 Specification: φ8mm(5/16''),φ10mm(3/8'')、φ15mm(1/2'')、φ25mm(1'')、φ40mm(11/2'')、φ50mm(2'')、φ65mm(21/2'')、φ80mm(3'')、φ100mm(4'')。

4 materials of pump body: Aluminum alloy, cast iron, stainless steel, engineering plastic.

Diaphragm materials: NBR, Neoprene, Fluorine plastic (Viton), Teflon(FEP/F46)/PTFE for different medium

Parameter:

Name Model Inlet/outlet

(mm)

Capacity
(L/min)
Head
(m)
Suction height
(m)
Max grain diameter

φ(mm)

Supply air pressure

(kgf/cm2)

New pneumatic diaphragm pump QBK-8 8 16 50 5 1 2-7
QBK-10 10 20 50 5 1 2-7
QBK-15 15 20 50 5 1 2-7
QBK-25 25 100 50 5 2.5 2-7
QBK-40 40 140 50 5 4.5 2-7
QBK-50 50 240 50 5 8 2-7
QBK-65 65 280 50 5 8 2-7
QBK-80 80 400 50 5 10 2-7
QBK-100 100 480 50 5 10 2-7


  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Middle East,Asia,Emerging Markets
  • Founded Year:1995
  • Address:上海闵行银都路
  • Contact:Shine Xin

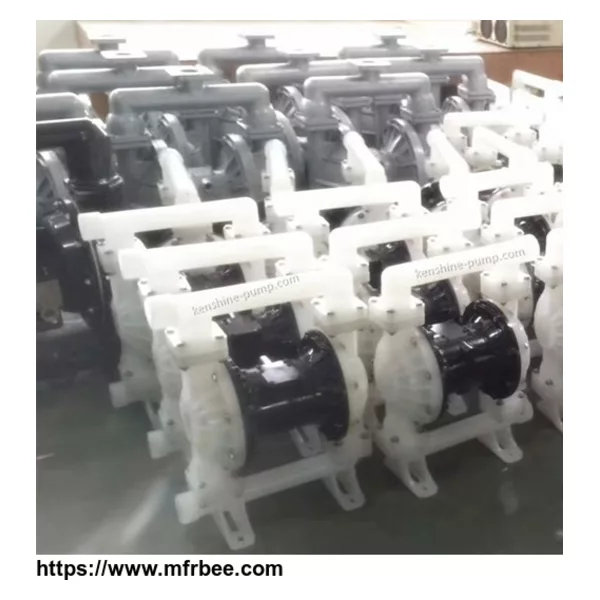

more images of QBK AODD pump air operated double diaphragm pump
