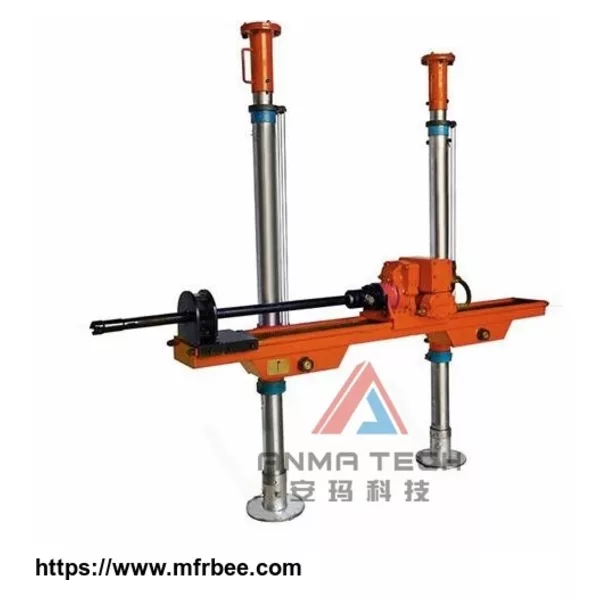

ZQJC Pneumatic Bracket Drilling Machine
Product sourcing details
Supplier: Hebei Anma Mech&Elec Technology Co., Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
ZQJC Pneumatic Bracket
Drilling Machine
ZQJC Series pneumatic bracket drilling machine is driven by compressed air and widely used in coal mine for drilling hole from different angles, such as water prospection, water injection, decompression, gas drainage hole and geological prospection.
Performance Parameter | Unit | Parameter Values | |||||
Drilling Rig Type | ZQJC | 360/8.0S | 420/10.0S | 560/11.0S | 650/11.0S | 720/11.0S | 800/11.3S |
Working Air Pressure | Mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Rated Torque | N·m | 360 | 420 | 560 | 650 | 720 | 800 |
Rated Speed | r/min | 215 | 230 | 190 | 165 | 150 | 135 |
Max Output Power | kW | 8 | 10 | 11 | 11 | 11 | 11.3 |
