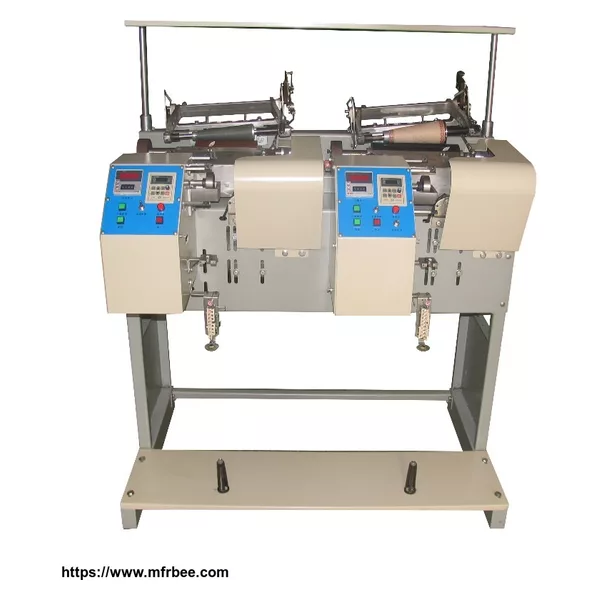

High speed cotton winding machine

Place Of Origin
China
Minimum Order
1
Packaging
Wooden box
Delivery
25 Days

Specification:

Technical parameters
Number of spindles for each machine 2
Winding speed 600 meters/minute
Maximum guide thread stroke 300 MM (can be adjusted mechanically)
Shaping mode Double-cone shape (can be adjusted mechanically)
Drive mode Single-spindle control
Rated power 180w/sepindle
External dimension 1200*700*1475mm

Characteristics:

- Single-spindle drive and control; and winding parameters may be adjusted for single spindle

- Length can be fixed electronically, and uniform weight is for winding

- The device may detect broken yarn in an electronic way

- Heavy-hammer grid-shape tension control unit

- Variable frequency control for less energy


  • Country:
  • Business Type:
  • Market:
  • Founded Year:
  • Address:
  • Contact:Huiying Yao
more images of High speed cotton winding machine
  • salesdhh@CN,2019-07-05 10:38:37
    - The screen may show various parameters under different conditions of bobbin winding in a real time manner, such as winding length and bobbin diameter
    - Full-automation material receiving and bobbin changing mode as well as conveyer belts may send materials automatically.
    - Take multiple measures for machine faults, such as parameter anomalies, motor overspeed, out of stroke tolerance, and hardware fault.Equipped with a high-sensitivity automatic stop device at the position of broken yarn
