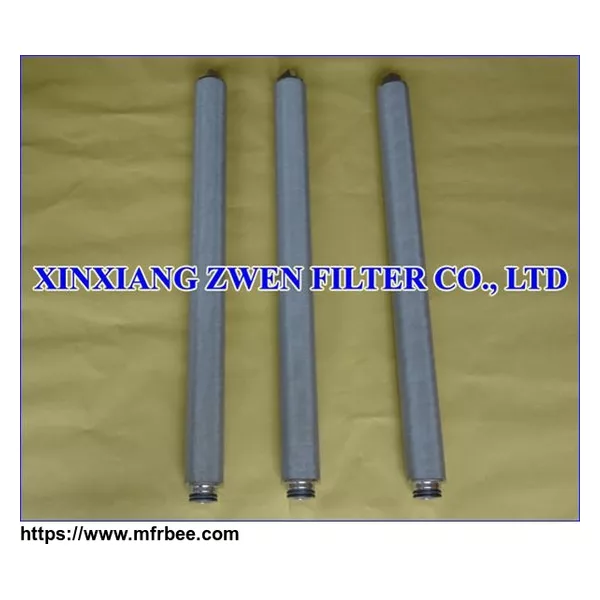

Cylindrical Metal Filter Feature
1. Cylindrical Metal Filter is surface filtration
2. Cylindrical Metal Filter is good for backwash because the pore passage of zwen sintered wire meshapertureis very smooth
3.Cylindrical Metal Filter has uniform pore size distribution
4. Cylindrical Metal Filter will not shed in filtration process
5. High compression strength
6. High mechanical strength
7. High rigidity
8. High abrasion resistance
9. Good durability against most liquids, gases and aggressive steam
10.High temperature resistance
11. High filter rating accuracy
12. High filter efficiency
13.Good corrosion resistance
14. Washable and Cleanable
15. Reusable
16. Long service life
Cylindrical Metal Filter Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Wire Mesh
Filter Rating: 0.5-300 Microns
Filter Efficiency: > 99.99 %
Operation Temperature:≤816℃
Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,100 mm,150 mm, 250 mm, 380 mm, 500 mm or others
Length: 40 mm, 90 mm, 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector:
1. DOE
2. 220
3. 222
4. 226
5. Thread (NPT,BSP,G,M,R)
6. Flange
7. Special customization
Application
Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
