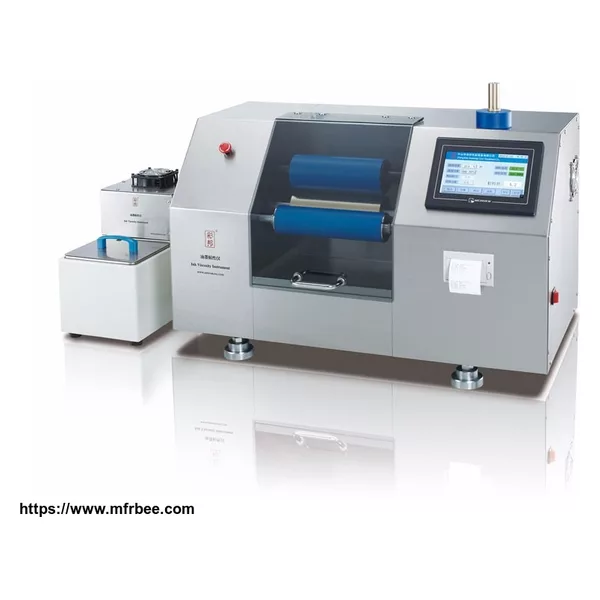

CB-50T Inkometer

Technical Specifications:

Brass roller speed range: Speed 1:400 RPM; Speed II: 800 RPM; Speed Ill: 1200 RPM; Speed IV: 1600 RPM; Speed V: 2000 RPM;

Additional: Roller Testing Speeds- Programmable from 0 to 2000 RPM

Power supply voltage: 220v, 50/60 Hz

Power: 1600W (motor 800W, water tank 800W)

Water pump flow: 10L/minute (Water tank capacity: 8L)

Lateral error: Lateral error of brass roller will be±0.3mm after leveling on workbench.

Temperature accuracy: The temperature error is only±0.2℃when working on official standard water tank, which capacity of 7.5L for 7 liters water in side.

Display accuracy: 0.1gram-meters.

Testing Accuracy: Reproducibility ± 0.3 gram-meters to conventional offset ink and ±0.5 gram- meters to UV ink when base on same testing condition,

Printing: Testing time, number, temperature, speed, tack values.

Accessories: Official standard version machine is easy to assemble and remove parts,

with 1 ink pipette of ink capacity of 1.32cc, which is very easy to dismantle, install and cleaning.

Dimensions: 750x300x480mm

Net weight: 130 KG

Noise: less than 50 dB

Digital ink viscosity instrument mainly adopts the highest configuration of modern intelligent industrial control: PLC touch control screen servo motor, can clearly and accurately display instantaneous copper roll rotation, water tank temperature,

Automatic adjustment of test conditions that do not meet the requirements (servo motor can guarantee that the speed of rotation is not more than 1 rotation)

Ensure the stability of the test conditions under any circumstances. Ensure the accuracy and repeatability of the detection ink viscosity value.

At the same time, the instrument is also equipped with humanized design, automatic measurement and manual measurement can be set up, and the whole process does not

Need to manually operate the clutch pressure between the test roll and the even roller, and the instrument is completed automatically.

Instrument sensor and no- load correction is simple, viscosity value can be corrected with other brands of instruments viscosity is worth consistent.

The instrument can be extended to external PC data reading function (optional).

(Optional accessory)

Cold & hot thermostatic water tank
