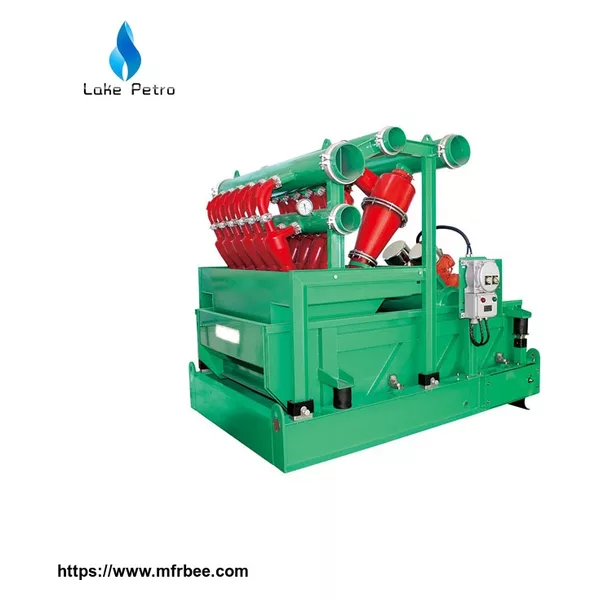

The desander with underflow shaker is also called mini desander cleaner which is applicable for both weighted and unweighted drilling mud, while traditional desander no underflow vibrating screen only for unweighted drilling fluids. And comparing with large size mud cleaner, the mini desander is cost-effective. For compact mud system used in HDD, CBM, water well drilling and mining project, mini desander is an ideal choice.
2. Main Technical Parameters:
3. Features:
(1). Desander options with shaker and without shaker for flexible application.
(2). Desander cyclone PU material with better abrasion resistance.
(3). No under shaker design structure compact and assembly flexible.
(4). Mini desander cleaner with shaker for both weighted / unweighted mud in various drilling.
(5). The optimized distribution of cyclone velocity field makes separation ability better and range of separated granularity wider.
(6). The underflow port of cyclone is pressed-umbrella-shaped so the wet-bottom spigot product makes particles in separation zone quickly flow out and reduces blocking in underflow port.
(7). The advanced balanced elliptical shale shaker is adopted the balanced elliptical shale shaker has big handling capacity, small noises and mesh screen of long service life.
(8). The symmetrical liquid feeding mechanism makes the liquid flow of cyclone have reasonable distribution and stable operation.
(9). The frame strength of mesh screen is good, the tension apparatus adopts rigid tension, and the service life of the mesh screen is long.
4. FAQ:
Why you need to choose Lake Petro?
As a professional oil and gas service company, Lake Petro has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.
Can you make us the best quality products as well as a good price?
Yes,we can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us yourmoney will be safe.
What is special compare with other companies?
First, we provide the quality products, with BV and API certified; At the same time, we provide our customer with the best service after sale, any time any where.
