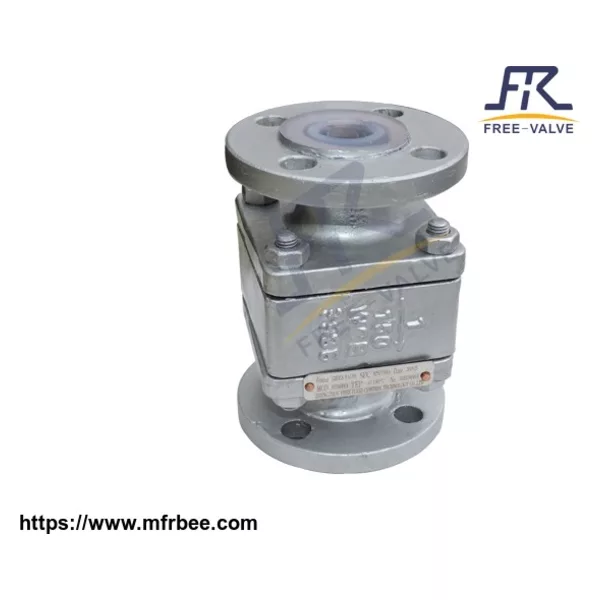

Fluorine Lined Ball Check Valve
Product Quick Detail
- Place Of Origin
- China
- FOB Price
- USD $200.00 / Piece
- Minimum Order
- 1
- Model
- FRHQ40
- Packaging
- wooden box
- Delivery
- 30 Days
Specifications
FREE-VALVE’sfluorinelinedball check valveis straight typethreepiece
designandmanufactured infullportuni-directional body design fully lined with FEP, PFA
AndPTFEhaving Flanged Ends.The valveuses PTFE as the rolling valve ball,the valve can be opened or closed
byballrolling up and downinthe slideofthebodychamber bodyunder the
mediumacting.Under normal flow the valves solid PTFE ball is pushed away from it’s seat and fluid flows through the valve, in a backwards flow condition the
ball is pushed firmly back into it’s seat and prevents flow through the valve stopping process,etc.
Features
1. The valve body adopts fullbore, with large flow and small resistance.
2. Good sealing performance, noiseless closing, no water hammer.
3. Horizontal or vertical installation is acceptable.
4.Fully Lined Design to eliminate surface contact whichprovides maximum corrosion resistance
Technical Specification:
1.SizeRange: DN15~DN200
2.Applicable Temperature: 0~200℃
3.Connection Type:Flange
4.Lining Material:PTFE , PFA , FEP
5.Body material:WCB, CF8 ,CF8M
6.Pressure test:GB/T13927, API598
7.Face to Face: GB/T12221, ASME B16.10
Application:
FREE-VALVE’sfluorinelinedball check valves are mainly used in cold water, chemical and other pipe networks to prevent media flow back.
Price:200-1000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:FreeValve
