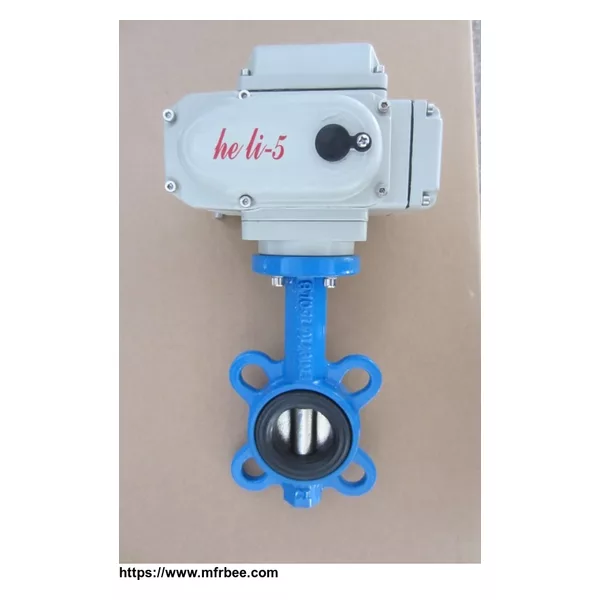

HL-05 series electric actuator for valves

FOB Price: USD $70.00 / Piece
Place Of Origin: China (Mainland)

Minimum Order: 1
Rotary Angle: 0-90

Packaging: N/A

Delivery: 15 Days

1. Due to working characteristic of valve, the actuator is required to have high -start-up torque, so

the actuator is capable to start up with full load whenever the valve is at the opening, closing or

any other intermediate positions. At the same time, the smaller rotation inertia is required for the

motor due to the adjustment of the flow. The motor for HL series Electric actuator is designed for

such special requirement and also adopt the over-hot protection

2. The uniting design of worm wheel output avoid the gap between the keyboards. The worm wheel

is made of alloy steel, featuring the high strength, good wear resistance and the long-term fatigue

3. Imported high quality microswitch make the ON-OFF more sensitive, more safer.

4. Each set of HL product is attached with a handle when ex-works. When it is necessary to have

manual operation, insert the handle directly to the manual operation port to drive valve

5. The high performance numerical control device make sure the consistency of process precision

and avoid the influence of man-made factor

6. The continuous 72hours over-load testing guarantee the product's stability

7. All kinds of the high precision testing equipment make the actuator abrasion less, more

precise, more perfect

Charges evaluation factor for

electric actuator

● Actual using charges

By using difference brands, customers will find some hidden charges in long time using process, excluding

charges for buying electric actuator.

O Electric actuator actual using charges

Purchasing charges+management and maintenance charges (including stop working

charges)+several times renewal charges=long term using charges

● Evaluation conclusion

For customers, best investments, highest reliability, Longest working life which can win largest

economics benefits

PLease validate HL electric actuators

Please make a compare with other brands when choose, then you will find a surprise. HL electric

actuator is always a different which comes from its special design, persistent pursuit for

quality, excellent sealing performance, perfect operation performance, and corrosion

resistance, wear resistance, endurance, reliability, beautiful appearance

ITEM	05 Series
performance POWER	DC12V	DC24V	DC220V	AC24V	AC110V	AC220V	AC380V	AC415V
Motor power	20W	10W
Rated current	3.8A	2A	0.21A	2.2A	0.48A	0.24A	0.15A	0.17A
Standard working time/torque	10S/50Nm	30S/50Nm
Optional working time/torque	2S/10Nm，6S/30Nm	6S/10Nm，10S/15Nm，20S/30Nm
Wiring	B type.S type.R type.H type.A type.K type.D type.T type.Z type.ZA type
Rotary angle	0~90° Max.-10°~100°
Weight	2.2kg（Standard type）
Voltage-withstanding value	500VAC/1minute（DC24V/AC24V）150VAC/1 minute（AC110V/AC220V）2000VAC/1minute(AC380V)
Insulated resistance	20MΩ/500VDC(DC24V/AC24V) 100MΩ/500VDC(AC110V/AC110V/AC380V)
Enclosure protection(Ingress protection)	IP-67
Surrouding temperature	-25℃~60℃（The other temperatures can be customized）
Installation angle	Any angle
Case material	die-casting Aluminum Alloy
Optional function	Heater space,overheat protection,with handwheel
