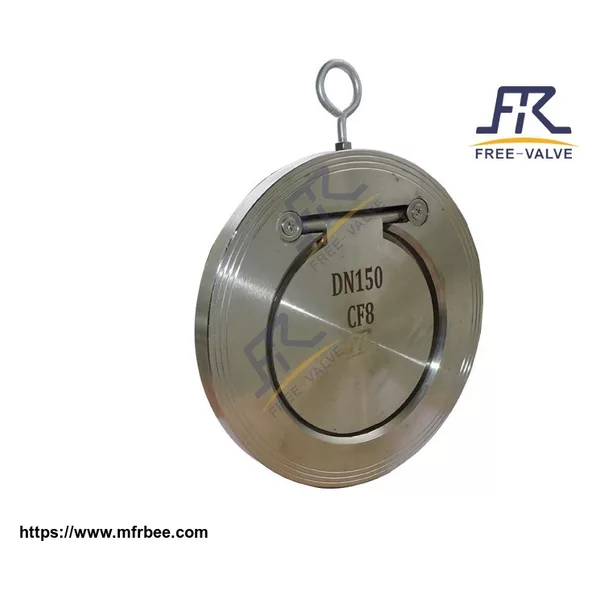

Single Plate Wafer Check Valve
Product Quick Detail
- Place Of Origin
- China
- FOB Price
- USD $200.00 / Piece
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 30 Days
Specifications
FREE-VALVE’ssingle plate wafer check valvesareinstalled in the piping system,their main function is to prevent mediumfrom flowing backwards, the valves areswing type,andcomes with a short pattern sandwich type flangeless wafer body conforming to theGB/T12221and ASME B 16.10 face to face dimensions,the valveperforms the same withSwing Check Valve
Features
1.The eccentric mounted hinge pin in combination with the disc seat guarantees a positive shut off of the returning medium.
2.Seat Ringisreplaceable type.
3.Tightening torque to be applied on the companion flange bolting is lower due to face sealing O-rings.
4.Short Face-to-face.
5.Self centering in pipeline due to controlled outside diameter, enables easy installation.
6.Thevalves are suitable for mounting between weld neck or slip on type companion flanges of different standards.
Technical Specification:
1.SizeRange:NPS2~NPS24,DN50~DN600
2.Applicable Temperature:0~150℃
3.Connection Type:Wafer Type, Flangeless, Sandiwch Pattern
4.Sealing material:Rubber
5.Body material：WCB,stainless steel
6.Test standard：GB/T13927,API598
7.Flange To Flange:ANSI B 16.10,GB/T12221
Application:
FREE-VALVE’ssingle plate wafer check valves are mainly used in water supply systems, supply air system,petroleum, chemical and other industrial sectors to have the most suitable place of installation space restrictions.
Model:FRH74X
Price:200-1000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:FreeValve
