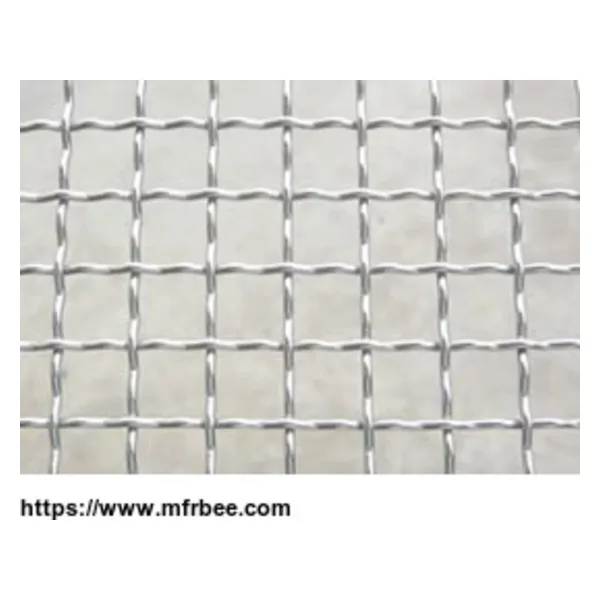

Galvanized Steel Crimped Mesh
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Crimped Wire Mesh
Galvanized crimped mesh Processing: Weaving with crimped wire
Galvanized crimped mesh General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire meshare for roasting of flour food and meat.
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh | Opening (mm) | Weight (kg/m2 ) |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
