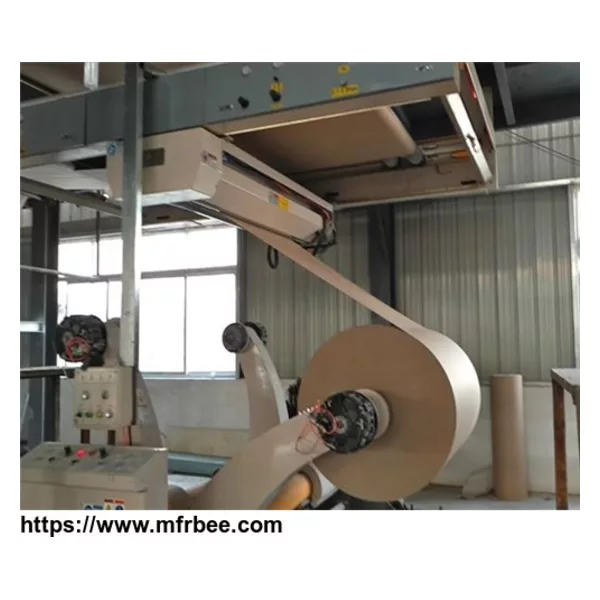

Paper Faced Gypsum Board Production Line Equipment

Place Of Origin
China
Set
1200
Minimum Order
1
Packaging
N/A
Delivery
30 Days

Paper Faced Gypsum Board Production Line Equipment
Equipment Introduction

Gypsum board production line based configuration table
Annual production(㎡) Plant area(㎡) Drying method Total installed capacity Productin linespeed
(m/min)
Requird workers Electrical configuration
1.5 million 60m×26m Thermal oil 116kw 3.0 8 Siemens
2million 70m×26m Thermal oil 127kw 4.2 10 Siemens
3million 84m×30m Thermal oil 166kw 6.25 11 Siemens
4million 110m×30m Thermaloil/Hot stove 210kw 8 11 Siemens
5million 112m×30m Thermaloil/Hot stove 234kw 10.5 11 Siemens
6million 122m×30m Thermaloil/Hot stove 240kw 12.5 11 Siemens
8million 136m×30m Thermaloil/Hot stove 349kw 16.5 11 Siemens
10million 150m×30m Thermaloil/Hot stove 467kw 20 12 Siemens
12million 172m×30m Thermaloil/Hot stove 488kw 24 13 Siemens
15million 204m×36m Thermaloil/Hot stove 578kw 31 15 Siemens
20million 240m×40m Thermaloil/Hot stove 778kw 40 15 Siemens
Product specifications:length 2400—3000mm width 1200—1220mm thickness 8—15mm



Gypsum board production line specifications models, complete sets of prices, is based on user requirements of product quality, product output, raw material structure and other factors designed to determine.


Annual output:1.5 million square meters / year -3000 square meters / year

1.Reasonable design, perfect matching, reliable operation;

2.My company has: less investment, fast construction, low operating costs, cost-effective advantages;

3.Set the production line design, manufacture, installation, commissioning, production in one, created a number of elite teams;

4.Customer success, customer development for business purposes, long-term cooperation for a better future for the idea.


Service items:


1.My company has a professional installation team, home installation and commissioning, until the production of qualified products so far;

2.Long-term supply of spare parts, equipment warranty for one year

3.Responsible for long-term technical advice and technical services, ready to solve a variety of technical problems

4.Charge d'affaires shipment and the relevant import and export procedures.
