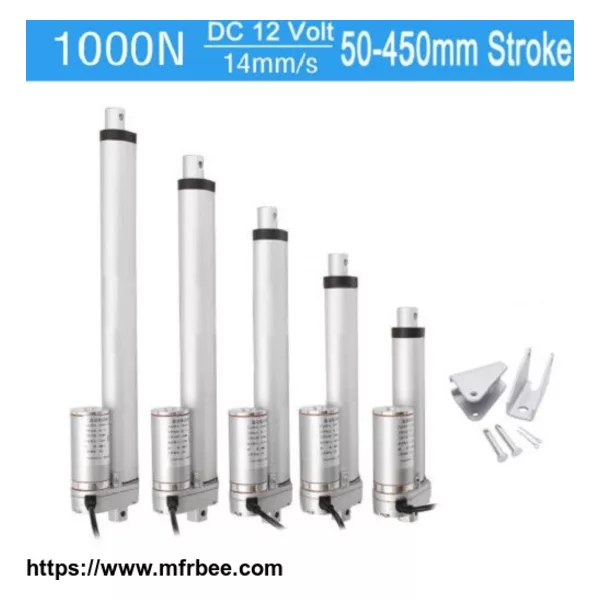

2"-18"(50mm-450mm) Linear Actuator 1000N 12V 14mm/s
Product Quick Detail
- FOB Price
- USD $39.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- USA
- Packaging
- 1
- Delivery
- 15 Days
Specifications
Package Included
1pc strokelinear actuator
| Specifications | |||||||||
| Type | 12V 2 inches | 12V 4 inches | 12V 6 inches | 12V 8 inches | 12V 10 inches | 12V 12 inches | 12V 14 inches | 12V 16 inches | 12V 18 inches |
| Stroke Length (S) | 50MM | 100MM | 150MM | 200MM | 250MM | 300MM | 350MM | 400MM | 450MM |
| Voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12v | 12V | 12V |
| Stroke Length (inch) | 2inches | 4inches | 6inches | 8inches | 10inches | 12inches | 14inches | 16inches | 18inches |
| Min. Installation Distance(RL) | RL=S+105MM | ||||||||
| Minimum intallation distance | 6.11inches | 8.08inches | 10.24inches | 12.60inches | 14.57inches | 16.54inches | 18.50inches | 18.51inches | 23.62inches |
| Starting Current (No-Load) | 0.8A | ||||||||
| Minimum Current | 0.8A | ||||||||
| Maximum Current | 3A | ||||||||
| Max. Load | 1000N/225lbs | ||||||||
| Duty Cycle | 15% (stop for 17 minutes after continuously working 3 minutes) | ||||||||
| Limit Switch | Built in, Factory Preset | ||||||||
| Operation Temperature | -25℃-65℃ | ||||||||
| Protection Class | IP54 | ||||||||
| Rear Connector | No Rotation | ||||||||
| Color | Silver |
