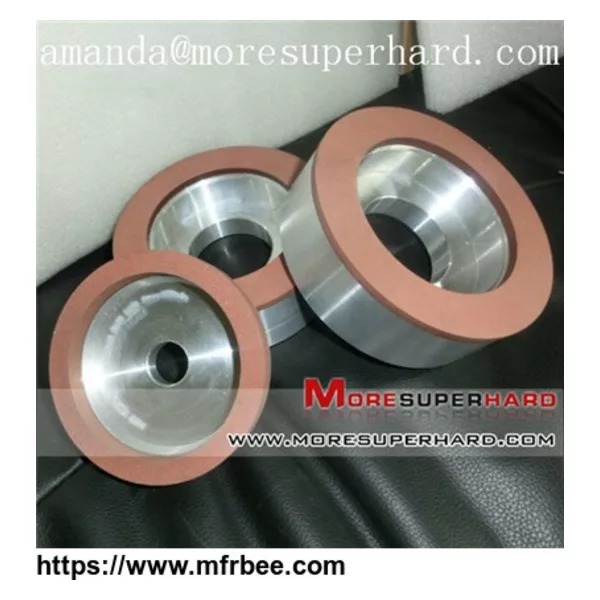

Resin bond CBN grinding wheel
Description:
brief description and superiority
Resin Bond CBN Grinding Wheel
1.High efficiency
2.Little grinding heat
3.Good sharpness
4.Name brand product made in China
detailed description
Resin Bond CBN Grinding Wheel
Application:
Applied to coarse grinding and finish grinding for metal materials, such as PCD and PCBN workpiece and tools, high speed steel, high vanadium steel, stainless steel,
steel and hard alloy.
For finishing grinding, polishing and ultra-finish grinding stage processing nonmetallic hard and brittle materials such as glass, stone, ceramics, gem, magnetic, etc.
Coarse Grinding
Less than 750
Less than 200
36#~150#
Finish Grinding:180#~1500#
Exceed Finish Grinding:1000#~3000#
Polishing:3000#~10000#
amandaATmoresuperhard.com
Wechat:18614972607
Our company also produces a series of diamond and CBN tools, welcome to consult and choose at any time
