Package Included:
1 pcs 10W 12VPolycrystalline Solar Panel

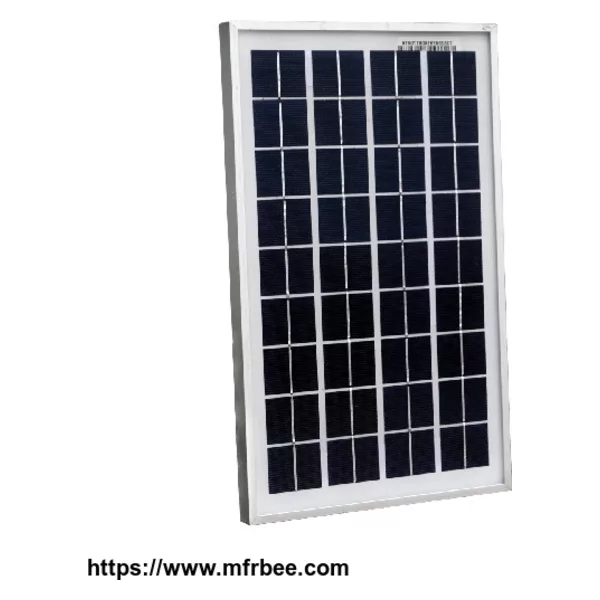

ECO-WORTHY 10W Polycrystalline Solar Panel Fast Shipping
ECO-WORTHY 's solar panel compose of multi-crystal solar cell with an efficiency of over 17%. All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lower mounting structure cost.
Specification | |
Rated power | 10 W |
Voc | 20.6V |
Vop | 17.3V |
Short circuit current (Isc) | 0.69A |
Working current (Iop) | 0.58A |
Output tolerance | ±3% |
Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
Temperate coefficient of power Voc | -0.47%/℃ |
Temperature range | -40℃ to +80℃ |
Frame | Heavy duty aluminum |
Kind of connection | Waterproof junction box, can be customized |
Guarantee of power | 90% within 10 years 80 within 25 years |
Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
SLA Battery Voltage | 12V |
Dimensions (L x W x H)mm | 337 ×204 x 18(13.3*8.06*0.72) |
Weight | 0.85kgs (1.88lbs) |
Quality assurance testing:
