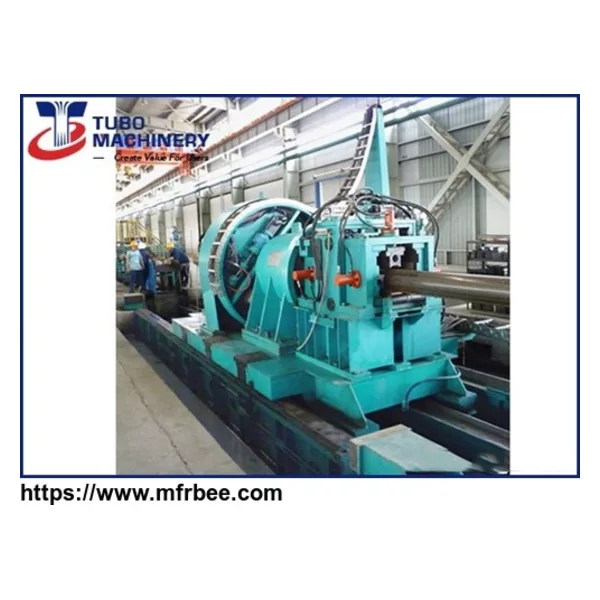

Orbital Mill Saw
Product Details:
Round Pipe: φ76—φ219mm
Square Pipe: 60*60—150*150mm
Rectangle Pipe: 100*50—150*100mm
Thickness: 2.5~8.0mm
Pipe Parameter | |
Round pipe | φ76—φ219mm |
Square pipe | 60*60—150*150mm |
Rectangle pipe | 100*50—150*100mm |
Thickness | 2.5~8.0mm |
Cutting precision | ±3.0mm |
Cutting length | 4~12m |
Design & manufacture CNC cutting machine according to customer's requirement | |
Equipment configuration | |
Control system | servo system |
Cutting type | double-blade mechanical milling |
Drive motor | servo motor |
Spindle motor | two servo motors |
Tape rotation motor | two servo motors |
Feeding Motor | two servo motors |
Linear Guides | Hiwin Taiwan |
Touch screen | 12 inch color HMI |
Features:
1.Saving the blade and reduce costs: Adopt double blade by R-θ control mode, so that the blade cutoff the profile by its contour and also two small blades costs just less than half of the price
for a conventional blade.
2. Tipped blade, increase strength: This model machine uses high strength, high stiffness tipped saw blade for cutting the pipe with inner ribs, welded high-strength materials,and fit for wide
scope material, saw blade cutting life is more than twice of the normal blade.
3.Cutoff inline, best quality with stable working performance and high efficiency: The software is independent research and development by us R & D design team familiar with pipe industry
production requirements, has a wealth of experience for more than 20 years. According to pipe diameter/wall thickness/line speed and other requirements, based on servo system and our own software
we can supply best steel tube and pipe cutting solution for worldwide customer.
