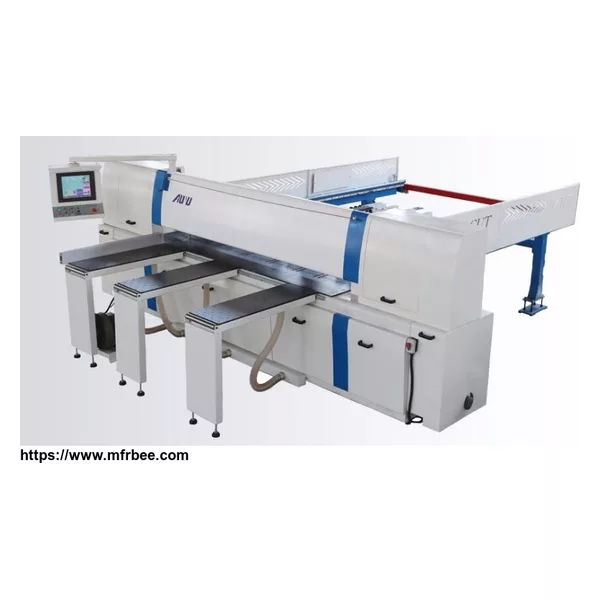

Model | MJK 270 | MJK 330 |
Cutting Length(mm) | 2600 | 3200 |
Cutting Thickness(mm) | 75 | 75 |
Main Saw Blade Dia.(mm) | ø355 | ø380 |
Main Saw Spindle Dia.(mm) | ø25.4 | ø 60 |
Speed of Main Saw Blade(rpm) | 4800 | 4800 |
Scoring Saw Blade Dia.(mm) | ø180 | ø180 |
Scoring Saw Spindle Dia.(mm) | ø25.4 | ø 30 |
Speed of Scoring Saw Blade(rpm) | 6500 | 6500 |
Forward Speed(m/min) | 0-60 | 0-60 |
Backward Speed(m/min) | 60 | 60 |
Speed of Feeding (m/min) | 60 | 60 |
Main Motor (KW) | 11 | 16 |
Feeding Motor(KW) | 1.5 | 2.2 |
High Pressure Fan Motor (KW) | 2.2 | 2.2 |
Working Pressure(Mpa) | 0.5-0.6 | 0.5-0.6 |
1. Main Function Controlled by industrial computer, with RTCP function, which realized 5 Axis 5 linkage, our 5 Axis laser bridge saw machine has powerful function as: Camera location Vacuum sucker moving slabs Thickness measurement Auto Blade adjusting function Chamfering of ...
锯切长度 2680mm/3280mm 锯切。 120mm 主域名 Φ350-450mm 主锯片轴 Φ75mm 主刀速度 4800米/分钟 二次锯片直径 Φ200mm 第一锯片轴 Φ50mm 二次锯片速度 7000米/分钟 锯切速度 0-100米/分钟 外形尺寸(长*宽*高) ...
Power Supply: Single-phase 220V/Three-phase 380V Power: 1.8KW Current: 5A Frequency: 50/60Hz Pressure: 0.6MPA Applicable Size:Aluminum profile of 10mm-120mm doors and windows Equipment Size: L3835mm*W380*H1505mm Features: Equipped with a patented product CNC positioning system, ...
1. Final Board Size: 1220*2440 mm 2. Vertical Saw Roller Length: 1400 mm 3. Horizontal Saw Roller Length: 2600 mm 4. Working Thickness: 3-25mm 5. Saw Blade Rotation Speed: 6900r/min 6. Saw Blade Driving Power: 5.5 kw 7. Saw Blade Size: Φ305*35*2.5-100mm 8. Feeding Speed: ...
1. Cutting board size:2440*1220 mm 2. Saw blade size:250~315 mm 3. Cutting board thickness:3-50 mm 4. Main blade rotate speed:6500-7000 r/pm 5. Overall dimension:8500*5500*1020 mm 6. Gross weight:7200 KG 7. Motor power:43 KW ...
Servo Swing Angle Fully CNC Circular Saw Blade Grinding Machine,Saw blade automatic grinding machine manufacturers Lide Xin Machinery Manufacturing is a professional manufacturer of all kinds of professional control CNC TCT saw blade grinding machine with the design, ...
Features: 1. Adopted imported CNC system, It can achieve various profile automatic cutting off in right size. 2. Imported Ball Screw control head's motion, and the two saw heads are adjustable and cut the profiles in 90,45,22.5 degree freely 3. Several profile processing ...
SWZ1500 CNC beam drilling line Technical parameter for reference Name Unit Parameter Remark Range of workpiece H beam mm 150x80~1500x800 U beam mm 150x80~1500x400 Box beam mm 150x80~1500x400 Thickness mm ≤50 Length m Standard 15 By client request Drill power box number piece ...
CNC H beam drilling machine 1) high precision positioning , dolly feeding driven by servo motor 2) 3D drilling line machine 3) Composed one CNC beam line together with CNC band saw machine Features: a) Equipped with three drilling spindles, the drilling process finished when ...
