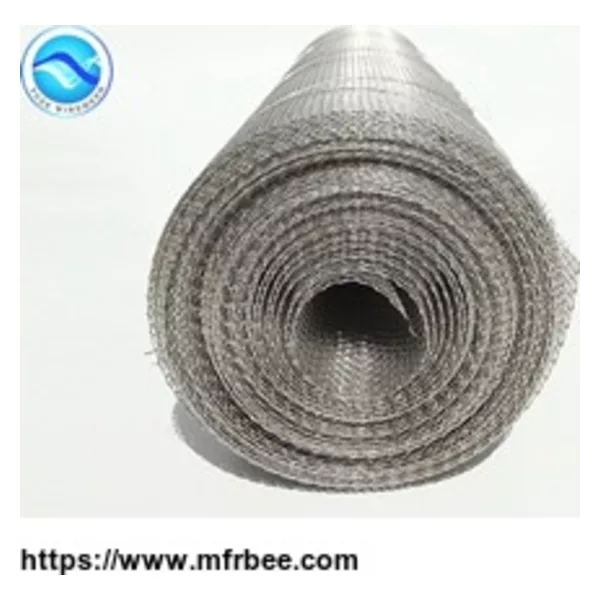

Square Woven Mesh

Place Of Origin
China
Minimum Order
30
FOB Price
USD $2.12 / Piece
Packaging
wooden cases
Delivery
15 Days

Square Woven Mesh mainly includes regular Plain /Twill Weave Mesh; ranged from 1mesh to 635mesh; “Tensile Bolt”Bolting Cloth; Crimped Mesh and Welded Mesh.

Regular Plain /Twill Weave Mesh and”Tensile Bolt “ Bolting Cloth are normally for industrial applications.

All the Square mesh quality control based on ASTM E 2016-15 Standard and raw material based on ASTM A580-14 standard.

Raw material Grade:304, 304L, 316, 316L, 430, etc.

General uses in different applications:

· Sizing

· Particle separation and filtering

· Particulate sifting

· Safety and equipment protection.

Packing:wrapped with moisture-proof paper, then in wooden cases


Detailed Specifications:

Plain /Twill Square Woven Mesh1
Mesh count Wire Dia Width of Opening Open area
Inches mm Inches mm %
1X1 0.157 4 0.84 21.4 71
4X4 0.063 1.6 0.187 4.75 56
8X8 0.043 1.1 0.08 2.08 42
10X10 0.039 1 0.06 1.54 36
12X12 0.023 0.584 0.06 1.52 51.8
14X14 0.023 0.584 0.048 1.22 45.2
16X16 0.018 0.457 0.0445 1.13 50.7
18X18 0.017 0.432 0.0386 0.98 48.3
20X20 0.016 0.406 0.034 0.86 46.2
24X24 0.014 0.356 0.0277 0.7 44.2
30X30 0.012 0.305 0.0213 0.54 40.8
35X35 0.011 0.279 0.0176 0.45 37.9
40X40 0.01 0.254 0.015 0.38 36
50X50 0.008 0.203 0.012 0.31 36
