Main Technical Parameters: | |||
Model | Size | Max.Load | |
in | kN | Short Tons | |
SJ | 2.3/8-2.7/8 | 45 | 5 |
3.1/2-4.3/4 | |||
5-5.3/4 | |||
6-7.3/4 | |||
8.5/8-10.3/4 | |||
11.3/4-13.3/8 | |||
13.5/8-14 | |||
16-20 | |||
21.1/2-24.1/2 | 60 | 6 | |
26-28 | |||
30-36 | |||
Model | Size | Max.Load | |
in | kN | Short Tons | |
SP5° | 2.3/8-10.3/4 | 45 | 5 |
SP12° | 2.3/8-4.1/2 | ||
SP18° | 2.7/8-6.5/8 | ||
Model | Size | Max.Load | |
in | kN | Short Tons | |
SJX | 2.3/8-4.1/2 | 60 | 5 |
SJX | 4.1/2-7 | ||
SJX | 7-10 | ||
SJX | 10-14 |
CDZ drilling pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.CDZ drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The rated ...

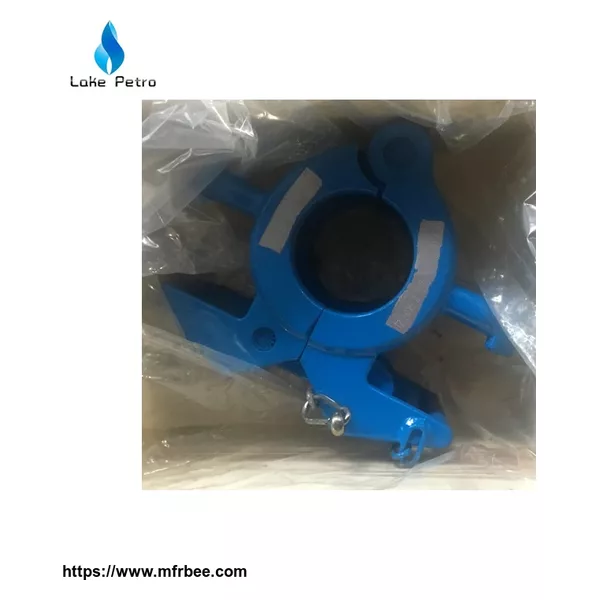

Type SJ, type SP and type SJX single joint elevators are designed and manufactured in Accordance with API spec 8C in our company. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well. Type SJ single joint elevators ...
Type SJ, type SP and type SJX single joint elevators are designed and manufactured in Accordance with API spec 8C in our company. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well. Type SJ single joint elevators ...
The following example is for you reference: 1.Specification: 2.Description: SJX series auxiliary elevator are hoisting tools for handling single pipes or working together with the professional tools CRT to move the tubulars from gate to well centre.The products shall be ...
The following example is for you reference: 1.Specification: 2.Description: SJ series auxiliary elevators are mainly used in handling single casings or yubings in oil drilling natural gas drilling and cementing operation.The products shall be designed and manufactured according ...
Product Description: SJ series auxiliary elevators are mainly used in handling single casings or tubings in oil drilling natural gas drilling and cementing operation. The products shall be designed and manufactured according to API Spec 8A/8C Specification for drilling and ...
Single joint elevators are designed and manufactured according to API Spec 8A-Specification for Drilling and Production Hoisting Equipment. The elevators are hoisting tools for handling casing and etc in oil and gas field. Lake Petro company is a professional supplier of various ...
Type SJ Single Joint Elevators 1.type SJ Auxiliary Elevators are designed and manufactured in Accordance with API spec 8C in our company. 2.They have a complete range of sizes. 3.They are widely used in drilling,servicing and cementing for oil and gas well. Type SJ auxiliary ...
