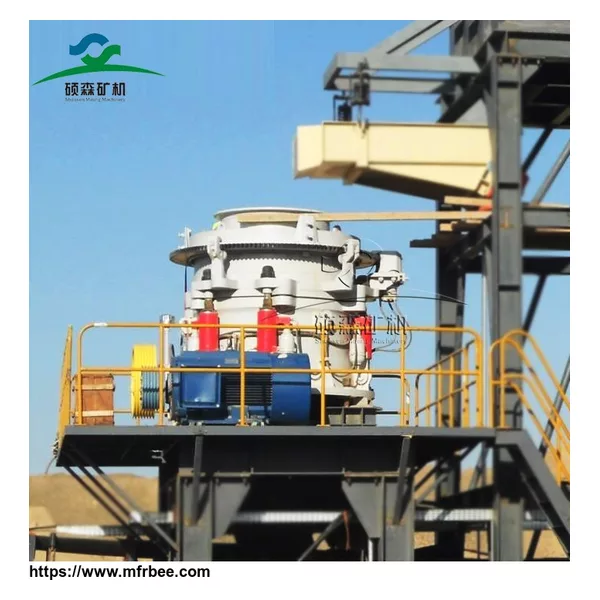

stone hydraulic cone crusher

FOB Price: USD $50,000.00 / Piece
Place Of Origin: China

Minimum Order: 1

Packaging: 20'container

Delivery: 15 Days

Max Feeding size: 76-320 mm

Power: 160-400 kw

Capacity:55-700 TPH

Applied material: marble,granite, quartz, pebble,iron ore, talcum, fluorite,gypsum,etc

Product description: Hydraulic Cone crusher is suitable for secondary crushing rocks with compressive strength of 320 MPa. It widely used in mining, metallurgy, construction, highway, railway, chemistry industry,etc.

Main function of Hydraulic Cone Crusher

hydraulic cone crusher application

HP Series of highly efficient Hydraulic Cone Crusher is a world-level cone crusher introduced with the up-to-the-minute technology of Germany. The HP Hydraulic Cone Crusher not only improves the production capacity and crushing efficiency, but also widens applying area, which can break stones from limestone to basalt hardness range. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The HP Hydraulic Cone Crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.

Operating principle of Hydraulic Cone Crusher:

The working parts are two cutter heads, also called cones; one is fixed cone (also called outer cone), the other one is movable cone (also called inner cone). The outer cone is fixed, which is one part of frame; the movable cone is plugged freely in the eccentric bush, so the central axis between the fixed cone and the movable cone intersects and forms into a bevel. When rotating, the movable cone rotates along the inner surface of the fixed cone. The place that the movable cone pressed against the fixed cone becomes the crushing cavity, where the materials is pressed, impacted and bent by the movable cone. The place that the movable moves away from the fixed cone becomes the discharging open, where the crushed materials is discharged out under the role of gravity, and the materials are sent from the feed open.

Feature of the Hydraulic Cone Crusher

1. High crushing ratio and production efficiency.

2. Less spare part consumption and low operation cost.

3. Between-layer pressuring crushing and better finished product shape.

4. Hydraulic protection and hydraulic cavity clearing, high automatization and less stopping production and repairing time.

5. Thin oil lubrication makes the life time increased.

6. Various crushing cavity.

7. Easy maintenance and operation.

8. The crusher can provide customers larger capacity, better product shape, and easy operation.

If you want to know more about our equipments details,please contact us

Shanghai Shuosen Mining Machine Co.,Ltd

www.shuosencrusher.com

sarahzzdshj@gmail.com

sarah@shuosencrusher.com

Country: China (Mainland)
Business Type: jaw crusher,impact crusher,cone crusher,ball mill, raymond mill, ore separator, rotary dryer, rotary kiln...etc
Market:
Founded Year:2015
Address:JinQiao Economic Development Zone Shanghai China
Contact:sarah niu
