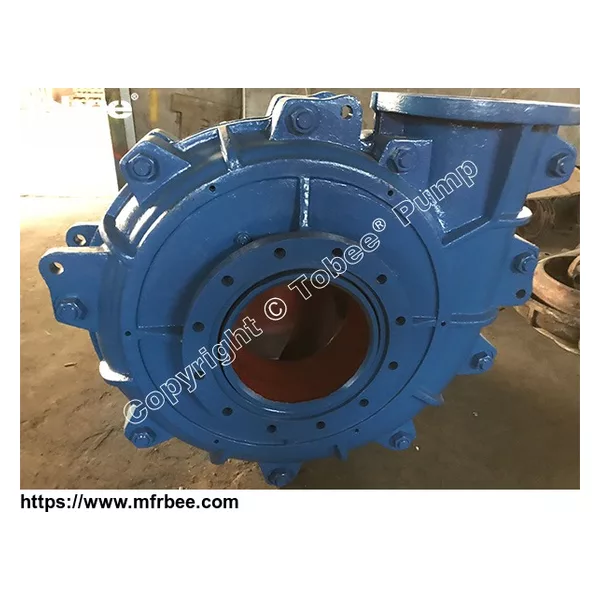

Tobee® AH Series Slurry Pumps

Concentration
0%-70%
Head
6-125 m
Size
1
Materials
Hyper chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel etc
Handing Solids
0-130mm
Capacity
3.6-5400 m3/h
Place Of Origin
China
Minimum Order
1
Packaging
wooden case
Delivery
20 Days

Tobee®AH Series Slurry Pumpsare the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handlinghigh abrasive, high density slurries.

Design Features:


√ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer.
√ Elastomer seal rings back all liner joints.
√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
√ Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
