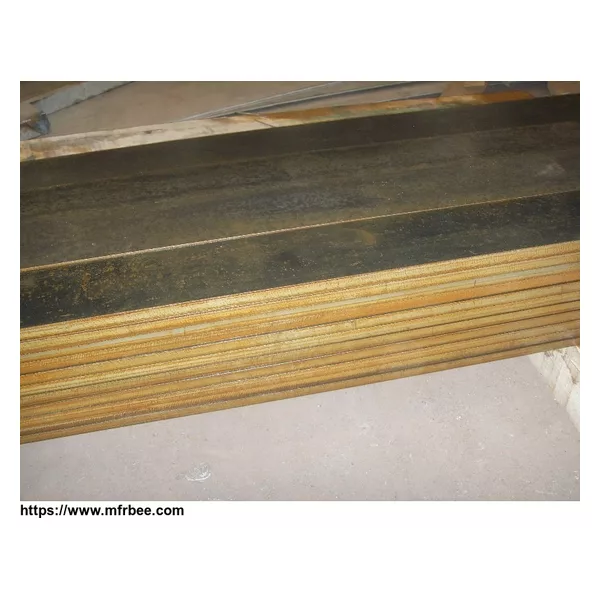

electric magnetic iron
Product Quick Detail
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- pallet
- Delivery
- 15 Days
Specifications
chemical composition(%,max)
Trademark B-B:
C 0.003 Si 0.01 Mn 0.13 P 0.009 S 0.006 Cr 0.02 Ni 0.02 Al 0.03 Cu 0.02
Mechanical Properties
| Brinell Hardness (HB) | ||
| HIGH PURITY IRON | max. | typical |
| Cold-rolled strip / sheet | 105 | 90 |
| Hot-rolled strip / plate | 105 | 90 |
| Quarto plate | 100 | 90 |
| Round bar | 110 | 95 |
Electrical and Magnetic Properties
Characteristics Typical Values
| Initial Permeability | 300 – 500 |
| Permeability | 3500 - 6000 |
| Coercive Force | 60 – 120 A/m |
| Saturation Induction | 2.15 T |
| Density at 20 °C | 7.86 kg/dm³ |
| Melting Point | 1536 °C |
|
Linear Expansion Coefficient Temperature Range 0 – 100 °C |
12x10-61/°C |
| Modulus of Elasticity | 207 kN/mm² |
- Country: China (Mainland)
- Business Type:
- Market:worldwide
- Founded Year:2000
- Address:no.12 team,shengli road,qingpu,shanghai
- Contact:pu xiao
