Protection

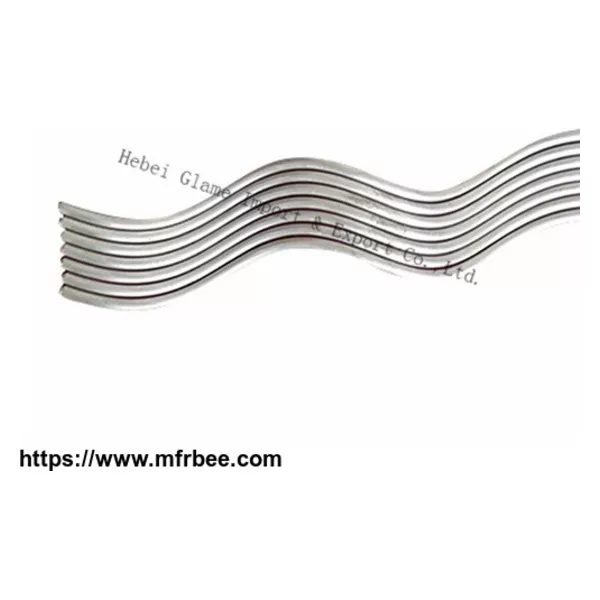

The preformed armor rods are used for protecting conductor from damages subjected to vibration, clamp stress, friction, electric arc & other external influence.
The preformed armor rods & short preformed armor rods are of simple structure in which each set of armor rods look like hollow tube,used for protecting the conductor wrapped up through forming holding strength.
Material
These products are made from aluminium alloy.
Note
Lay direction of the armor rod must be the same as that of the outer stranding of the conductor to which it is applied.
Ordering Information
When ordering,please specify: conductor type, stranding, outside diameter and lay direction
For AAC/AAAC/ACSR/ACAR
Selection Chart
Model | Suitable wire (GB/T 1179-1983) | Clamp length(mm) | Diameter (mm) | Clamp weight(kg) | |
Model | Outside Diameter(mm) | ||||
HL-95/15 | LGJ-95/15 | 13.61 | 1400 | 3.5 | 0.7 |
HL-95/20 | LGJ-95/20 | 13.87 | 1400 | 3.5 | 0.7 |
HL-95/55 | LGJ-95/55 | 16.00 | 1500 | 3.5 | 1.0 |
HL-120/7 | LGJ-120/7 | 14.50 | 1400 | 3.5 | 0.7 |
HL-120/20 | LGJ-120/20 | 15.07 | 1400 | 3.5 | 0.7 |
HL-120/25 | LGJ-120/25 | 15.74 | 1400 | 3.5 | 0.7 |
HL-120/70 | LGJ-120/70 | 18.00 | 1800 | 4.5 | 1.3 |
HL-150/8 | LGJ-150/8 | 16.00 | 1500 | 3.5 | 1.0 |
HL-150/20 | LGJ-150/20 | 16.67 | 1.0 | ||
HL-150/25 | LGJ-150/25 | 17.10 | 1.0 | ||
HL-150/35 | LGJ-150/35 | 17.50 | 1.2 | ||
HL-185/10 | LGJ-185/10 | 18.00 | 1800 | 5.0 | 1.3 1.4 1.4 1.4 |
HL-185/25 | LGJ-185/25 | 18.90 | |||
HL-185/30 | LGJ-185/30 | 18.88 | |||
HL-185/45 | LGJ-185/45 | 19.60 | |||
HL-210/10 | LGJ-210/10 | 19.00 | 1800 | 5.0 | 1.5 2.0 2.0 2.0 |
HL-210/25 | LGJ-210/25 | 19.98 | |||
HL-210/35 | LGJ-210/35 | 20.38 | |||
HL-210/50 | LGJ-210/50 | 20.86 | |||
HL-240/30 | LGJ-240/30 | 21.60 | 1900 | 5.0 | 2.2 |
HL-240/40 | LGJ-240/40 | 21.66 | |||
HL-240/55 | LGJ-240/55 | 22.40 | |||
HL-300/15 | LGJ-300/15 | 23.01 | 2000 | 6.0 | 2.2 2.5 2.7 2.7 2.7 2.7 |
HL-300/20 | LGJ-300/20 | 23.43 | |||
HL-300/25 | LGJ-300/25 | 23.76 | |||
HL-300/40 | LGJ-300/40 | 23.94 | |||
HL-300/50 | LGJ-300/50 | 24.26 | |||
HL-300/70 | LGJ-300/70 | 25.20 | |||
HL-400/20 | LGJ-400/20 | 26.91 | 2200 | 6.0 | 4.2 4.2 4.2 4.2 4.7 4.8 |
HL-400/25 | LGJ-400/25 | 26.64 | |||
HL-400/35 | LGJ-400/35 | 26.82 | |||
HL-400/50 | LGJ-400/50 | 27.63 | |||
HL-400/65 | LGJ-400/65 | 28.00 | |||
HL-400/95 | LGJ-400/95 | 29.14 | |||
HL-500/35 | LGJ-500/35 | 30.00 | 2500 | 6.0 | 5.2 |
HL-500/45 | LGJ-500/45 | 30.00 | |||
HL-500/65 | LGJ-500/65 | 30.96 | |||
HL-630/45 | LGJ-630/45 | 33.60 | 2500 | 7.9 | 6.8 |
HL-630/55 | LGJ-630/55 | 34.32 | |||
HL-630/80 | LGJ-630/80 | 34.82 | |||
HL-800/55 | LGJ-800/55 | 38.40 | 2500 | 7.9 | 6.8 |
HL-800/70 | LGJ-800/70 | 38.58 | |||
HL-800/100 | LGJ-800/100 | 38.98 | |||
Note:The meaning of the letters and numbers in the model No.: H-Armor Rod; L-spiral preformed; after“-”is the suitable wire type. |
