Technical specifications | |

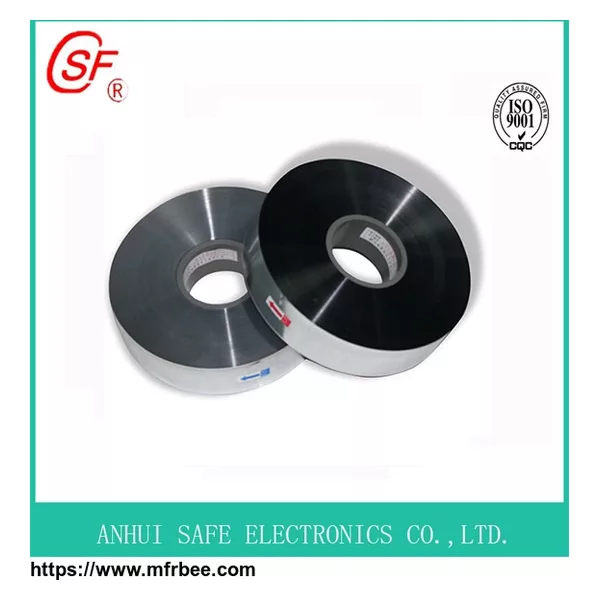

Model | MPP(Metallized Polypropylene Film) |
Material | BOPP |
Hardness | Soft |
Transparency | Opaque |
Processing Type | Multiple Extrusion |
Thickness | 2.2-12um |
Width | 4.5-130mm |
Density | 0.905±0.005 g/cm3 |
MOQ | 1 kilogram |
Margin Value | 0.4mm 1mm 1.5mm 2mm 2.5mm |
Production Capacity | 120 Tons Per Month |
Types of Matallized Layer | Al/Zn Metallized Film, Al Metllized Film |
Size | Available on Request (Customized Metallized Film) |
Item |
Thickness (um) |
Width(mm) | Margin Value(mm) | ID(mm) | OD(mm) |
Metallized Polypropylene Film |
2.2,2.3,2.4,2.8,2.9,3,4,5,6,7, 8,9,10,12 |
14 ,17.5,21,26,30,35, 37.5,40,45,50,55,60, 65,70,75,80,85,90, 95,100,115,120,125,130 |
3.0, 2.5 , 2.0, 1.5,1.0 | 76 |
180,240, 320 |
Properties | Unit | Requirements |
Density | g/cm3 | 0.905±0.005 |
Thickness | μm | 2.2~12 |
Tensile Strength | MD(MPa) | ≥100 |
Elongation at Braek | MD(%) | 40~200 |
Heat Shrinkage | MD(%) | ≤5(120ºC,10min)(120ºC10min) |
Break-down Voltage | V/μm | ≥350(23ºC,DC) |
Dissipation Factor | - | ≤10*10-4(20ºC,1KHz) |
RC | ΩF | ≥5*104 |
ITEM UNIT TYPICAL VALUE TESTING STANDARD Thickness mic(Guage) 10~12(40~48) 10~12(40~48) ASTM D374 Aluminum adhesion ( EAA Testing) N/15mm 2.0~3.0 1.5~2.5 Internal Method Thickness of the aluminumed layer OD 2.4~2.6 2.8~3.2 Internal Method Å 480~520 560~640 Internal Method ...
