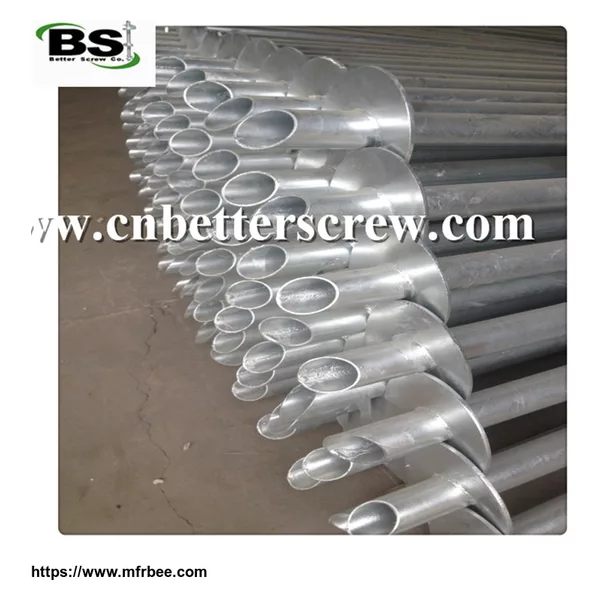

galvanized steel helical pole for export
Shaft Size (inch) | Wall Thick(inch) | Helix Thick(inch) | Lead Length(ft) | Helix Size(inch) | Extension Length (ft) |
2.875 OD. | 0.262 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
3.00 OD. | 0.238 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
3.50 OD. | 0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
4.50 OD. | 0.290/0.337 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
5.50 OD. | 0.362 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
6.625 OD. | 0.562 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
Contact us
If you want to konw more information about the product what you want,please contact me and i will reply you soon.
Shaft material: 40Cr(ASTM A5140) or 45#(ASTM 1045) steel. Helix plate: ASTM A36 hot rolled plate, available in 3/8\'\' and 1/2\'\' thickness. All helix leading edges sharpened and rock cut and 45 degrees. Corrosion protection: ASTM A153, hot dipped zinc coating. Efficient ...
Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B or Customized. Helices material: ASTM A36 hot rolled plate. Corrosion protection: ASTM A153, hot dipped zinc coating. Leading edge of helices beveled 45 degrees. Greater section modulus strength to resist ...
Available in 2\", 2.5\", 3\" or 4\" square tube helices thickness are available in 3/8” and 1/2” Helices material conforms to ASTM A36 hot rolled plate All helix leading edges sharpened and rock cut and 45 degrees. Corrosion protection to conform to ASTM A153 standard for ...
Product Description Helical piers, also known as anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard ...
Foundation construction support helical screw hot dip galvanized steel pipe Product Description Specification size Lead Length (ft) Helix Size (inch) Extension Length(ft) 1-1/2\" 3ft/5ft/7ft 8/10/12/14 3ft/5ft/7ft/10ft 1-3/4\" 3ft/5ft/7ft 8/10/12/14 3ft/5ft/7ft/10ft 2\" ...
Better Screw Co. is a subsidiary of Better Group Corp. Better Group Corp have several different subsidiaries focus on different fields such as Metal work, CNC Equipment, Investment, Construction, and Real Estate business. Better Screw Co. is the first class helical screws ...
· Our perforated square tubing can be used to make all kinds of strength equipment. · Punched with holes on all four sides down the entire length, convenient for the equipment assembling . · Different sizes (1.50”, 1.75\", 2.00\", 2.25\", 2.50\" etc) with 12 or 14gauge are ...
steel galvanized helical pier Helical Anchors Shaft Size Installation Torque Factor (k) Axial Compression Load Limit Ultimate-Limit Tension Strength Useable Torsional Strength Practical Load Limit Based Torsional Strength 1-1/2” Square Bar 9 - 11 70,000 lb. 70,000 lb. 7,500 ...
advantages:1. Lower tower pressure (component shape factor, tube angle is almost less than angle)2. Improve the load-carrying capacity. The Qingdao Dechun Steel Structure Co.,Ltd is situated in the famous beautiful coastal city - Qingdao from 2003.It owns area of 76,000㎡,the ...
