Product Description

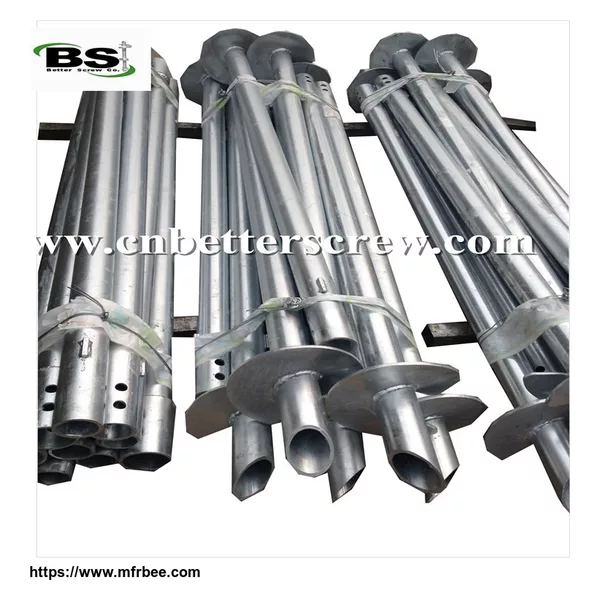

Helical piers, also known as anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil. All of our pier products are hot dipped galvanized for resistance to corrosion and to ensure long life. Our helical piers have been used all over the world to secure residential and commercial buildings.
Product name | Round Tubular Shaft Helical Piers |
Shaft material | Seamless high tensile pipe, confirms to ASTM A500 GRADE B |
Helices material | ASTM A36 hot rolled plate |
Round Shank Anchors | Hot Dip Galvanized to meet ASTM Specification A153 |
Size | 2 3/8”--8 5/8” round tube shaft |
Length | 3ft/5ft/7ft/10ft etc |
Helix Blade | 8", 10", 12" and 14" in diameter |
Blade thickness | 3/8” OR 1/2” |
Welding Standard | AWS D1.1 |
Finish | Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard. |
Round Shank Anchors | Hot Dip Galvanized to meet ASTM Specification A153 |
Helices Leading edge | Beveled 45 degrees |
Sample | Available |
OEM service | Available |
Markets | Europe, North America, South America |
Greater Section Modulus Strength to resist Twisting and Deflection.
Greater Load Capacities. |
