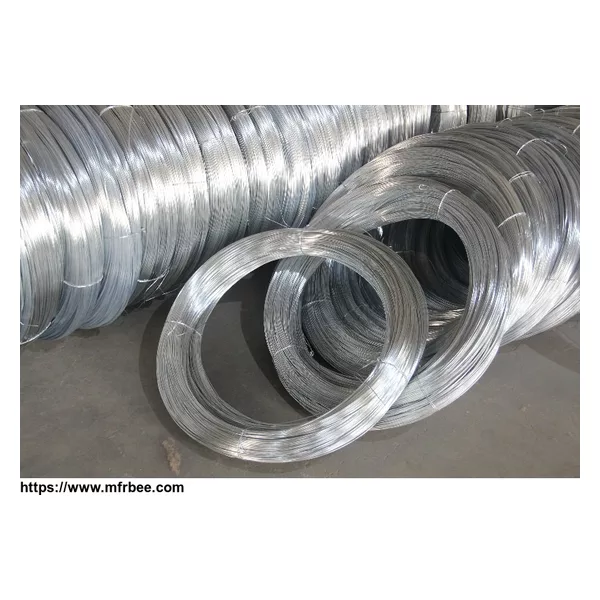

Name:BWG17 Galvanized Iron Wire
Material:Low carbon steel Q195
Specifications:8#-24#
Wire Gauge:0.7mm-4.0mm
Tensile Strength:340-500/mm²
Zinc Coating:20-240g/m²
Packing :
1. Inside with plastic film, outside weaving bag.
2. Inside with plastic film, outside hessian cloth
3. as customer's request
wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
8 | 4.06 | 4.19 | 4.00 |
9 | 3.66 | 3.76 | _ |
10 | 3.25 | 3.4 | 3.50 |
11 | 2.95 | 3.05 | 3.00 |
12 | 2.64 | 2.77 | 2.80 |
13 | 2.34 | 2.41 | 2.50 |
14 | 2.03 | 2.11 | - |
15 | 1.83 | 1.83 | 1.80 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.40 |
18 | 1.22 | 1.25 | 1.20 |
19 | 1.02 | 1.07 | 1.00 |
20 | 0.91 | 0.89 | 0.90 |
21 | 0.81 | 0.813 | 0.80 |
22 | 0.71 | 0.711 | 0.70 |
Electeo Galvanized Wire:
Black annealed wire → Heating unoil → Acid-washing and stoving → Electric galvanizing → Spooling in roll
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. Size range: BWG 8-BWG 22, or ...
Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling. Size range: BWG 8-BWG 22 Zinc coat: 45-180g/m2 Tensile strength: 350-550N/mm2 Elongation: 10% Galvanized wire hot dipped galv. is ...
Quick Information Brand Name:yjtwiremesh Place of Origin:China : Description Galvanized Iron Wire alvanized iron wire, also known as galvanized steel wire, finds most uses in binding of construction materials or weaving of galvanized wire mesh products. Materials:Low carbon ...
Galvanized wire mesh is made of selected plain steel wire with precise construction, uniform opening, excellent corrosion and rust resistance. Galvanized wire mesh it is mostly used as window screening, safety guards on machinery enclosures. It is also used in filtering liquid ...
black annealed Wire material: Low carbon wire of Q195. usages: black iron wire is mainly used in making of wire mesh,hangers and nails, fencing and welded wire mesh panels etc.. Standard gauge :from 8#-34#(0.18mm-4mm) Tensile Strength: 500~980 N/mm2 Coil weight: 25kg, 50kg, ...
Specification Material:Low carbon steel Q195 Diameter: 0.71mm-4.00mm Tensile Strength:340-500/mm2 zinc coating:20-240g/m2 Weight: 1kg to 100kgs per coil or According to customer\'s request Packing: Inside plastic film+Outside hessian(or Outside woven bag) Production Sequence ...
ntroduction Galvanized Iron Wire can be classified into Electro galvanized wire and Hot-dipped galvanized iron wire according to the difference zinc coating process.Most galvanized iron wire are used in construction,or daily use as binding materials,weaving of galvanized wire ...
