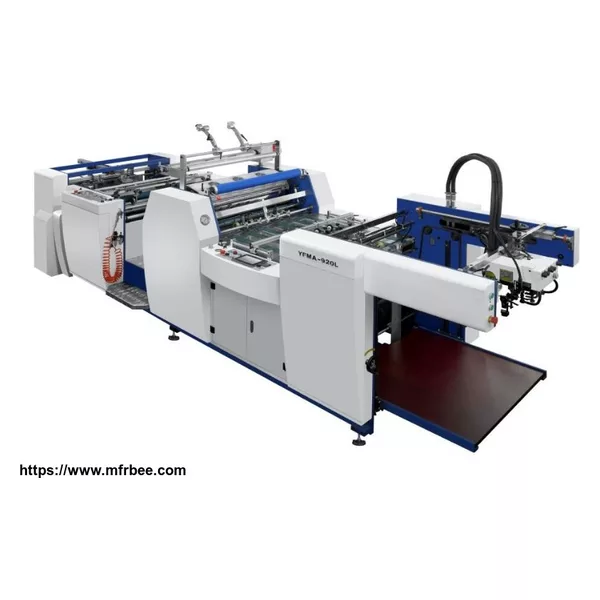

Improved Automatic Laminating Machine Model YFMA-L -iseef.com

Minimum Order
1
Place Of Origin
China
Packaging
N/A
Delivery
25-50 Days
Features:
YFMA-L series fully automatic laminators are our newly designed thermal film lamination machines. This lamination machine is composed of feeding system, laminating system, cutting system, paper collecting and rewinding system. The electric and pneumatic devices are controlled by programmable control (PLC) system. And the operator can operate the machine easily by touch screen. Heating roll adopts built-in heating system which has excellent heating remaining property to stabilize laminating temperature and make it more precise. This machine centralizes the features of compact structure, high automation and humanized operation design, is an excellent choice for large and medium-size enterprises.

Main technical parameter:
Model: YFMA-560L YFMA-720L YFMA-920L YFMA-1100L
Max laminating size(W*L): 560*820mm 680*940mm 889*940mm 1050*1200mm
Min laminating size (W*L): 210*260mm 210*260mm 210*260mm 300*300mm
Paper thickness: 105-500gsm 105-500gsm 105-500gsm 105-500gsm
Max. film roll diameter: φ300mm φ300mm φ300mm φ300mm
Total power: 20kw 380V
AC3 50/60HZ
24kw 380V
AC3 50/60HZ
24kw 380V
AC3 50/60HZ
26kw 380V
AC3 50/60HZ
Laminating speed: 5-60m/min 5-60m/min 5-60m/min 5-60m/min
Dimension: 4800*1450*1750mm 5100*1550*1750mm 5320*1750*1750mm 6100*1950*1750mm
Machine Weight: 1600kgs 1800kgs 2000kgs 2200kgs











  • Country: China (Mainland)
  • Business Type: Manufacturer,Trading Company
  • Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
  • Founded Year:2007
  • Address:2F208, NO.161 SANGUANDIANXIANG,XINHE STREET
  • Contact:Mancy Mao
