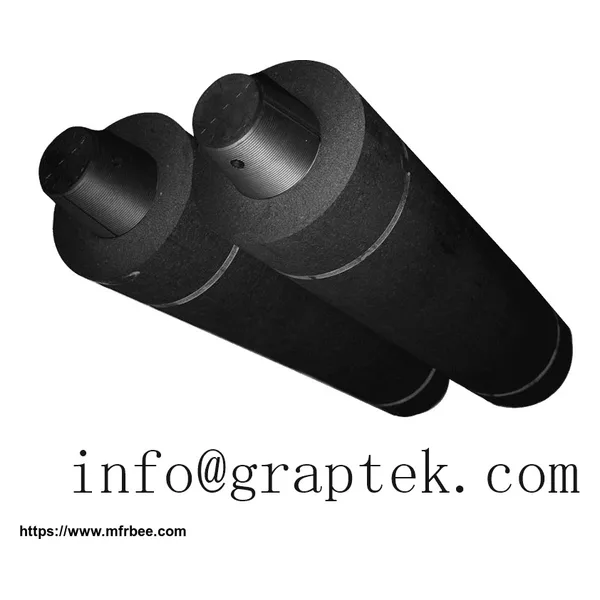

RP Graphite Electrode
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
RP graphite electrodes, referred to moulded columns of graphite, are used as the high temperature conductive material for electric arc furnaces. Regular power graphite electrodes are specified with allowable current density less than 17 A/cm2. The quality of the graphite electrode determines the productivity and cost of EAF steelmaking.
As a manufacturer, we also provide UHP grade graphite electrodes
- High current carrying capacity.
- Outstanding resistance to breakage.
- High resistance to oxidation and thermal shock.
- Good dimension stability, not easy to deform.
- High mechanical strength, low electrical resistance.
- High machining accuracy, good surface finishing.
|
Dia. (inch) |
Resistance (≤, µΩ·m) |
Density (≥, g/cm3) |
Flexure Strength (≥, MPa) |
Elastic Modulus (≤, GPa) |
Ash Content (≤, %) |
CTE (100 °C – 60 °C) (≤, 10-6/°C) |
Current Load (A) |
Current Density (A/cm2) |
|---|---|---|---|---|---|---|---|---|
| 8 | 8.5 | 1.53 | 8.5 | 9.3 | 0.5 | 2.9 | 5000–6900 | 15–21 |
| 9 | 8.5 | 1.53 | 8.5 | 9.3 | 0.5 | 2.9 | 6100–8600 | 15–21 |
| 10 | 8.5 | 1.53 | 8.5 | 9.3 | 0.5 | 2.9 | 7000–10000 | 14–20 |
| 12 | 8.5 | 1.53 | 8.5 | 9.3 | 0.5 | 2.9 | 10000–13000 | 14–18 |
| 14 | 8.5 | 1.52 | 7.0 | 9.3 | 0.5 | 2.9 | 13500–18000 | 14–18 |
| 16 | 8.5 | 1.52 | 7.0 | 9.3 | 0.5 | 2.9 | 18000–23500 | 14–18 |
| 18 | 8.5 | 1.52 | 7.0 | 9.3 | 0.5 | 2.9 | 22000–27000 | 13–17 |
| 20 | 8.5 | 1.52 | 7.0 | 9.3 | 0.5 | 2.9 | 25000–32000 | 13–16 |
| 22 | 8.5 | 1.52 | 7.0 | 9.3 | 0.5 | 2.9 | 32000–40000 | 13–16 |
| 24 | 8.5 | 1.52 | 7.0 | 9.3 | 0.5 | 2.9 | 38000–47000 | 13–16 |
- There should be less than two defects or holes on the electrode surface, the maximum size of which is mentioned in the below chart.
- There should be no transverse crack on the electrode surface. For the longitudinal crack, the length should be less than 5% of the electrode circumference and the width should be 0.3 mm to 1.0 mm.
- The width of black area on electrode surface should be less than 1/10 of the electrode circumference and the length should be less than 1/3 of the electrode.
