Derrick Hyperpool PMD
Product Quick Detail
- Minimum Order
- 100
- Place Of Origin
- China
- FOB Price
- USD $8.00 / Piece
- Packaging
- 2 pcs per carton, packed in wooden case
- Delivery
- 7-15work days
Specifications

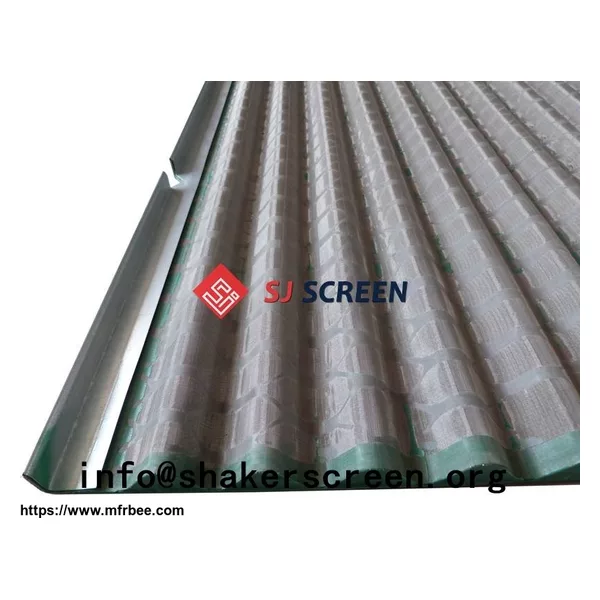

Replacement PMD Screens for Derrick Hyperpool Shakers
Technical Parameter
- Material:stainless steel 304/316/316 L.
- Construction Type:PMD (pyramid).
- Wear Mesh Shape:rectangle.
- API RP 13 C Designation:API 20 – API 325.
- Size:1050 × 570 mm.
- Weight:5.2 kg.
- Series:DX, DF, HP optional.
- Color:green.
- Package:2 pcs per carton, packed in wooden case.
SJ-PMD DH Shaker Screenis one of the most popular Derrick shaker screens replacement. It is designed for the high capacity Hyperpool 4-panel shale shakers. Installed with pyramid screens, the non-blanked screening area has increased 20% than conventional flat screens. All replacement shaker screens for Derrick shale shakers are all compliant with API RP 13C (ISO 13501), the new industry standard for physical testing and labeling of shaker screens.
Adaptable Shale Shaker Model
SJ-PMD DH shaker screens are used as the substitute screen for
- Derrick Hyperpool 4-panel shaker.
- Derrick Triple Hyperpool shaker.
- Derrick Dual Hyperpool with mud cleaner.
- Derrick Hyperpool VE (Vapor Extraction).
Competitive Advantage
- Stainless steel 304/316 wire mesh for longevity.
- Increase shaker capacity and reduce muds loss.
- Non-blanked screening area increased by more than 20%.
- Scientific & reasonable cost control system for competitive price.
- API RP 13C (ISO 13501) compliant.
- Adequate inventory in the shortest time to meet customers' demand.
- Warranty Period:1 year.
- Working Life:400–450 hours.
Performance Parameter
Download Catalogue
| Screen Designation | Mesh Type | API RP 13C Designation | Conductance Number | D100 Separation (microns) | Layer No. | Non-blank area (sq.ft) |
|---|---|---|---|---|---|---|
| SJ-PMD DH-A325 | DX | API 325 | 0.39 | 44 | 2/3 | 5.66 |
| SJ-PMD DH-A270 | DX | API 270 | 0.67 | 57 | 2/3 | 5.66 |
| SJ-PMD DH-A230 | DX | API 230 | 0.71 | 68 | 2/3 | 5.66 |
| SJ-PMD DH-A200 | DX | API 200 | 1.32 | 73 | 2/3 | 5.66 |
| SJ-PMD DH-A170 | DX | API 170 | 1.34 | 83 | 2/3 | 5.66 |
| SJ-PMD DH-A140 | DX | API 140 | 1.89 | 101 | 2/3 | 5.66 |
| SJ-PMD DH-A120 | DX | API 120 | 1.89 | 134 | 2/3 | 5.66 |
| SJ-PMD DH-A100 | DX | API 100 | 2.66 | 164 | 2/3 | 5.66 |
| SJ-PMD DH-A80 | DX | API 80 | 2.76 | 193 | 2/3 | 5.66 |
| SJ-PMD DH-A70 | DX | API 70 | 3.33 | 203 | 2/3 | 5.66 |
| SJ-PMD DH-A60 | DX | API 60 | 4.1 | 268 | 2/3 | 5.66 |
| SJ-PMD DH-A50 | DX | API 50 | 5.17 | 285 | 2/3 | 5.66 |
| SJ-PMD DH-A40 | DX | API 40 | 8.64 | 439 | 2/3 | 5.66 |
| SJ-PMD DH-A35 | DX | API 35 | 9.69 | 538 | 2/3 | 5.66 |
| SJ-PMD DH-A20 | DX | API 20 | 10.88 | 809 | 2/3 | 5.66 |
| * D100: Particles this size and larger will normally be discarded. * API: Corresponding API sieve equivalent as per API RP 13C. * Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing. |
Show Details
Remarks:
Derrick, Hyperpool, PMD, DX, DF, HP are marks of Derrick Corporation.
ShengJia only produces the replacement screens but not original from Derrick.
