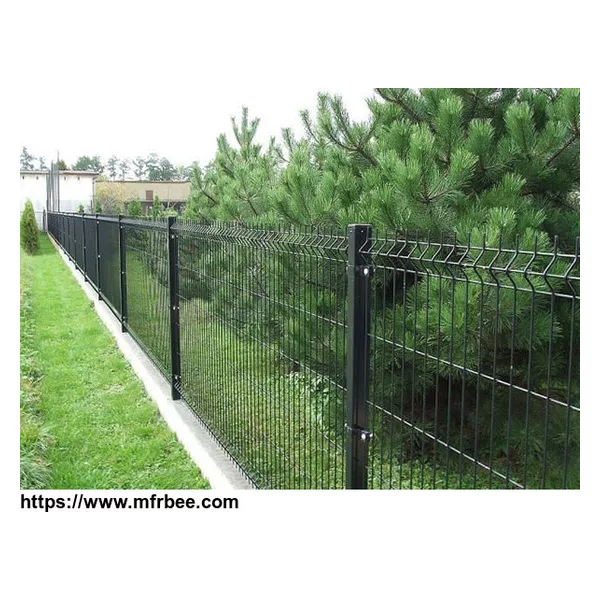

3D Wire Mesh Fence

Place Of Origin
China
Minimum Order
100
Supply Ability
10000 Square meter per day
Packaging
plastic film+wood/metal pallet
Delivery
15 Days

Description


Wire diameter: 2mm-6mm

Height: From 630 to 2430 mm(as your requirement)

Available

Stainless Steel Welded Wire Mesh/Galvanized Welded Wire Mesh/Hot-dipped Galvanized Welded Wire Mesh/ PVC coated Welded Wire Mesh/Painting Welded Wire Mesh/Welded Wire Mesh Panel/Welded Wire Mesh Fence

Application

The welded mesh fencing can be used for gardens, factory, road , highway, public buildings , parks, government buildings, ball court, industry & commercial sector.

Packing

>Fence panel:plastic film+wood/metal pallet

>Fence post:every post pack with a plastic bag(the cap is covered well on the post)+metal pallet

>Accessory:small plastic bag+carton box

Advantages

1. Cost Effective

The welded mesh panels provide competitive price levels whilst retaining high quality, rigidity and performance.

2. Long Life

Galvanized and PVC coated of corrosion resistance for long life and low maintenance and attractive appearance.

3. High Strength

The panels are welded from strong steel wire, with rectangular mesh and horizontal reinforcements that give the panels a high strength.

4. Rapid Installation

All components attractive fence with the other components which achieves professional and high quality fencing, installed with maximum effectiveness.


Specification


* Horizontal bars with a V-shaped bend of the panel give greater

* stiffness.

* Panel ends protruding 30 mm pins, which can be placed both at the bottom and the top.

* Width: 2500 mm.

* Height: from 630 to 2430 mm.

* Cell size: 200 x 50 mm.

*Cell Size curved portion 100 x 50 mm.

* Wire diameter: 5.00 mm.

Height (m) Width (m) Wire Dia. (mm) Opening (mm) Surface Treatment Color
1.0m 2.0m
2.5m
4.0mm
4.5mm
5.0mm
50x200mm
55x200mm
50x150mm
50x100mm
Galvanized + powder coated;
Galvanized + PVC coated;
Hot dipped Galvanized
RAL6005 Green,
RAL7016 Gray,
RAL9005 Black,
RAL8014 Brown,
RAL9010 White,
and other RAL colors
1.2m
1.5m
1.7m
1.8m
2.0m
Post Type Post OD. Wall Thickness (mm) Surface treatment Color
Square Post 40x60mm,
60x60mm
1.2mm,
1.5mm,
2.0mm
Galvanized + PVC coated;
Hot dipped Galvanized
RAL6005 Green,
RAL7016 Gray,
RAL9005 Black,
RAL8014 Brown,
RAL9010 White,
and other RAL colors
Peach Post 50x70mm,
70x100mm
1.0mm,
1.2mm
Round Post OD48mm,
OD60mm
1.2mm,
1.5mm,
2.0mm

Production process


Iron steel wire→Wire drawing→Rust removing → Straighten wire →Cutting wire→Welded Black fence panel→Bended → Acid washing →Galvanizing→Cleaning&Drying→PVC Spray or Coating→Inspecting Quality→Packing .


Packing & delivery


1.Wire Mesh Fence Packing:

> Fence panel:plastic film+wood/metal pallet

> Fence post:every post pack with a plastic bag(the cap is covered well on the post)+metal pallet

> Accessory:small plastic bag+carton box

2.Delivery:

In general about 10-20days.(according to the quantity)


  • Country: China (Mainland)
  • Business Type:
  • Market:Africa,Southeast Asia, Europe and the United States
  • Founded Year:2013
  • Address:Xutuan Industrial Zone,Anping county,Hebei Province
  • Contact:Baoxiong Liu
